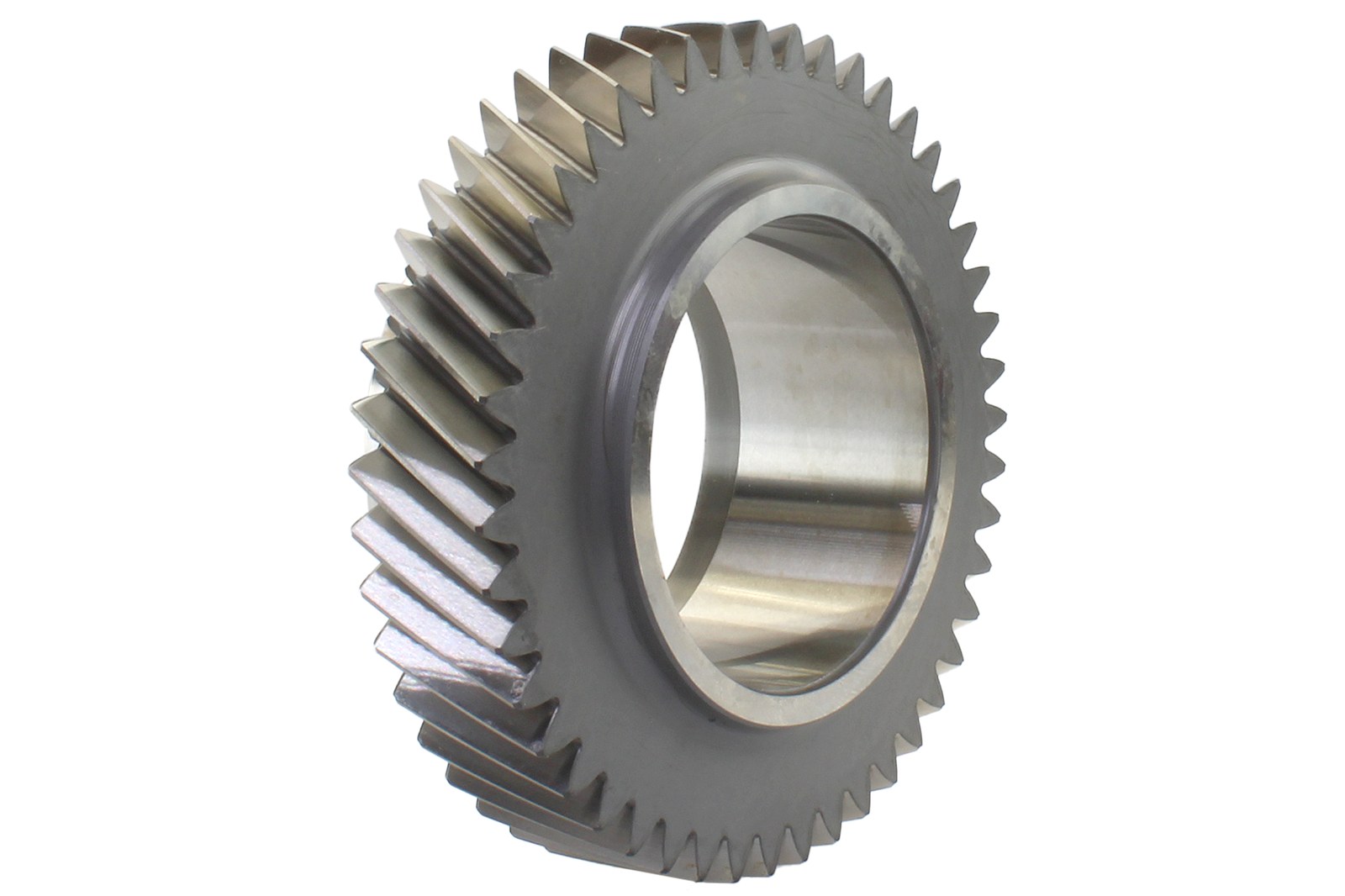

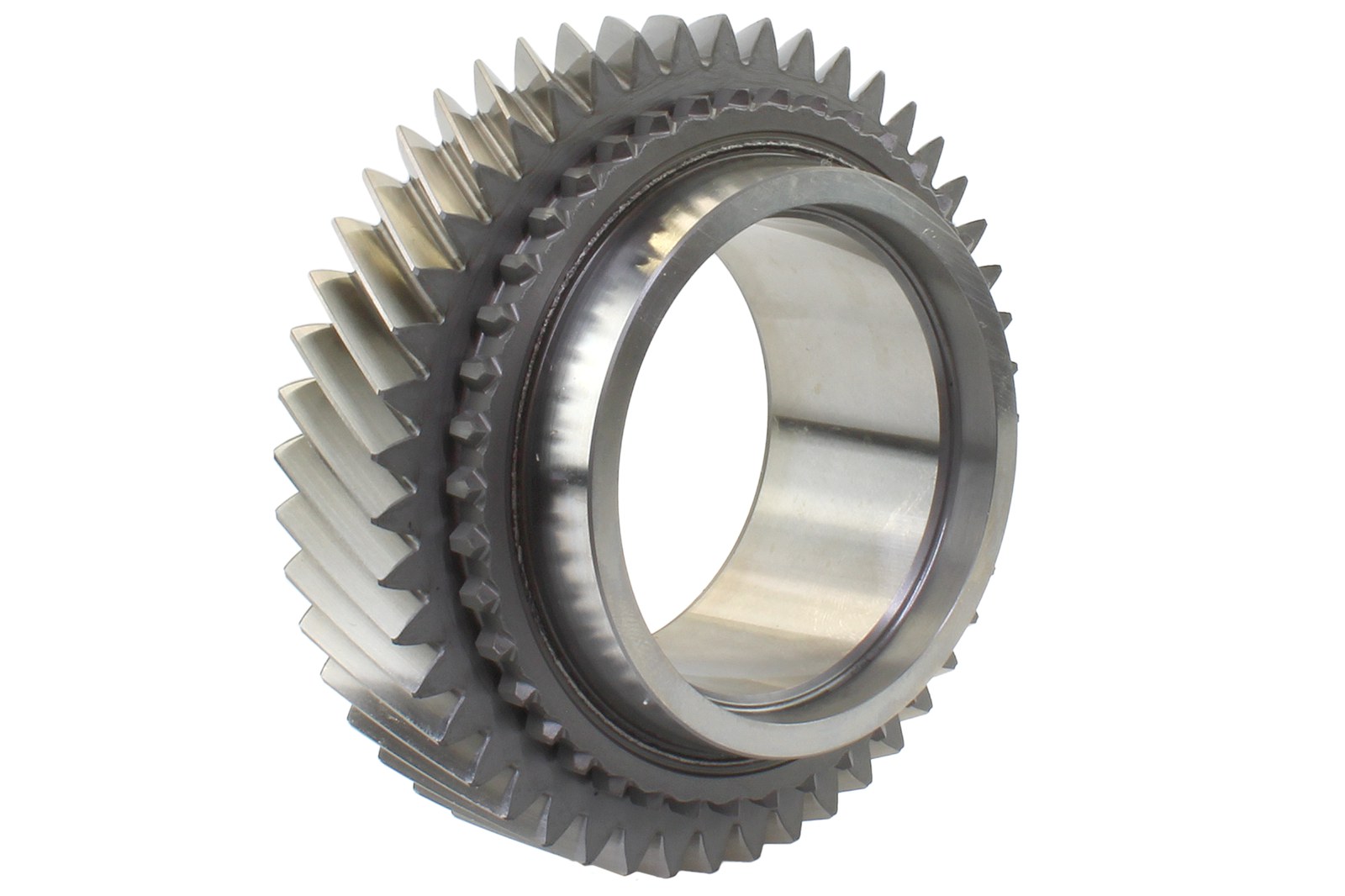

Koło zębate 0B5/DL501 5TH OE Supplier

Koło zębate przeznaczone do skrzyń 0B5. Przenosi moment obrotowy i realizuje przełożenie między wałami przekładni.

Worn or chipped teeth are manifested by howling at a certain gear, knocking when load changes and the presence of filings in the oil. Before assembly, compare the number of teeth, the width of the rim and the execution of the splint with the element dismantled from the box.

Technical data

• Product type: sprocket
• Number of teeth: 47
• Additional information: szerokość uzębienia: 20.39 mm
• Internal diameter: 57 mm
• Outer diameter: 104.8 mm
• Fits wheel/synchronizer: 5. bieg
• Gear wheel type: drive wheel
• Height: 40.2 mm
• Quality / Manufacturer: OE Supplier
• Condition: new
• Marking / Code: 0B5158M

Before buying, it is recommended to verify the fit after the 0B5 box model and to compare it with the element dismantled from the box.

Purpose

• Case type: 0B5
• Box manufacturer: Volkswagen AG
• Type of box: Dual-clutch (DSG / DCT)
• Number of gears: 7
