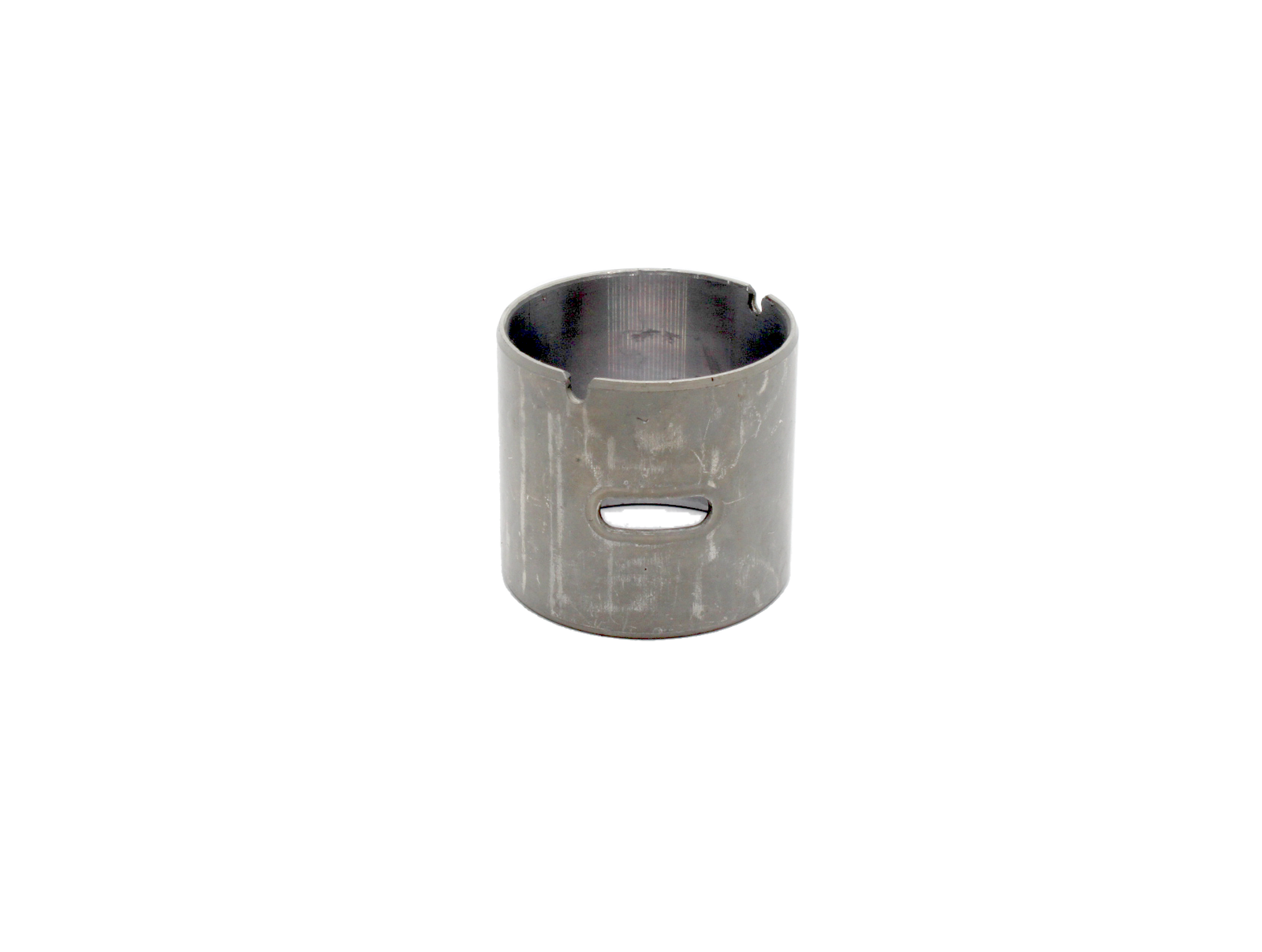

C4/AOD 37.7×41.3×38.1 aftermarket

The pan is designed for 4R70E / 4R70W / 4R75E / 4R75W / AOD / AODe boxes. It is a sliding shaft or drum bearing and maintains their position in relation to the housing, deciding on the tightness of the oil channels in this place.

The used bushing is manifested by a drop in oil pressure, a beating of the shaft, noise and accelerated wear of the sealants working next to it. Before assembly, compare the diameters and length with the element dismantled from the box.

Technical data

• Product type: pan
• Internal diameter: 37.7 mm
• Outer diameter: 41.3 mm
• Quality / Manufacturer: Aftermarket
• Material: Bearing Alloy (Babbit)
• Width: 38.1 mm
• Commercial markings: 37.7X41.3X38.1

Before purchase, it is recommended to verify the fit after the 4R70E / 4R70W / 4R75E / 4R75W / AOD / AODE box model and other dimensions 37.7 × 41.3 × 38.1 mm and a comparison with an element dismantled from the box.

Purpose

• Case type: 4R70E / 4R70W / 4R75E / 4R75W / AOD / AOD / C4 / C5
• Box manufacturer: Ford
• Type of box: automatic
• Number of gears: 3
