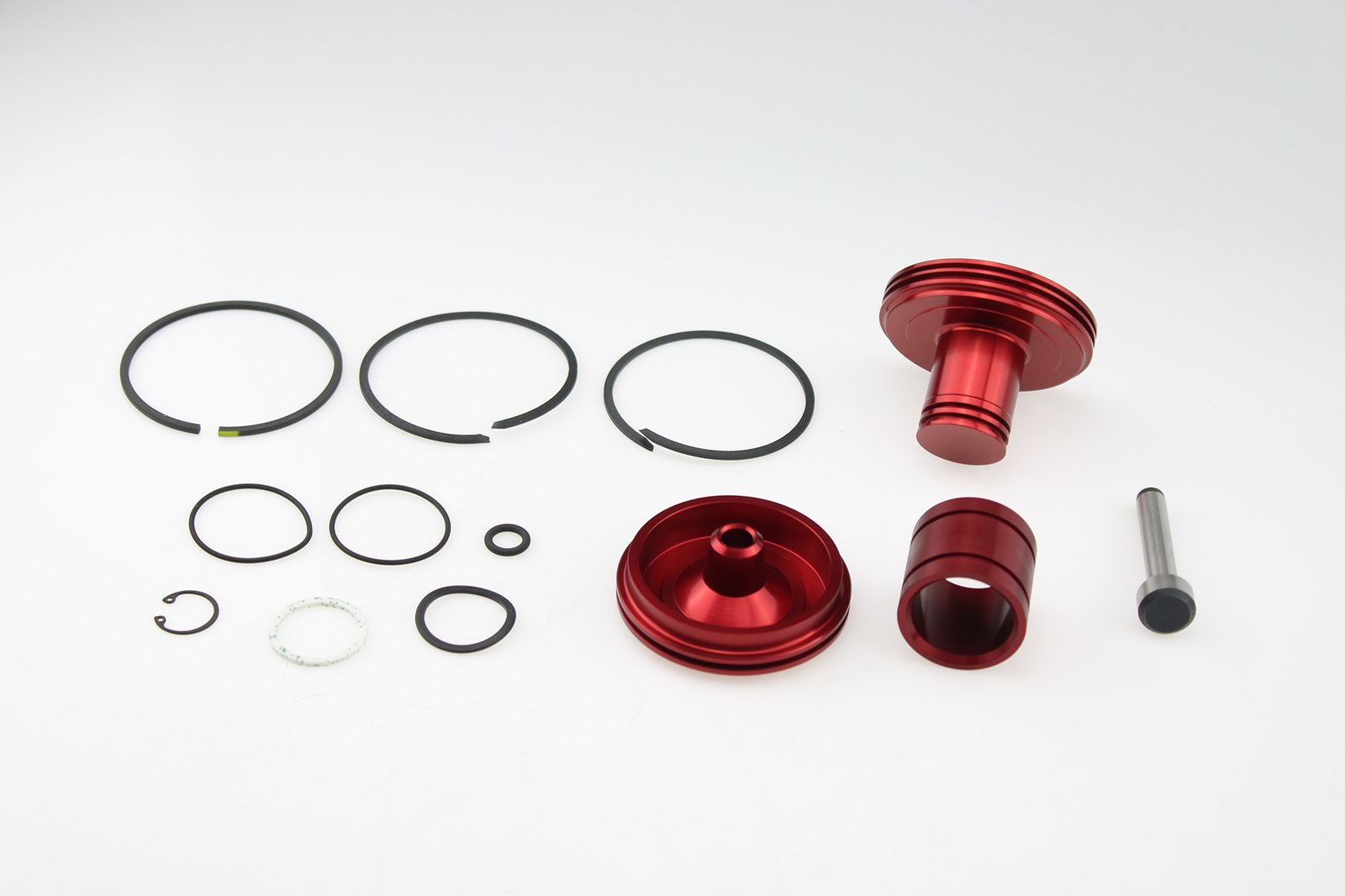

Serwomechanizm TF8

Serwomechanizm przeznaczony do skrzyń 36RH / 37RH / 46RE / 46RH / 47RE / 47RH. Zamienia ciśnienie oleju na ruch taśmy hamującej, zaciskając ją na bębnie przy załączaniu odpowiedniego biegu.

The damage is manifested by a slip on the run operated by the tape, delayed switching on and oil leakage from the servo cover. Before assembly, compare the diameter of the piston, the length of the pin and the sealing with the element dismantled from the box.

Technical data

• Product type: servomechanism
• Commercial markings: SUPER

Before purchase, it is recommended to verify the fit after the 36RH / 37RH / 46RE / 46RH / 47RE / 47RH and other box model and a comparison with the element dismantled from the box.

Purpose

• Case type: 36RH / 37RH / 46RE / 46RH / 47RE / 47RH / 48RE / A518 / A618 / A727 / TF8
• Box manufacturer: Chrysler, Chrysler Torqueflite 8
• Type of box: automatic
• Number of gears: 3
