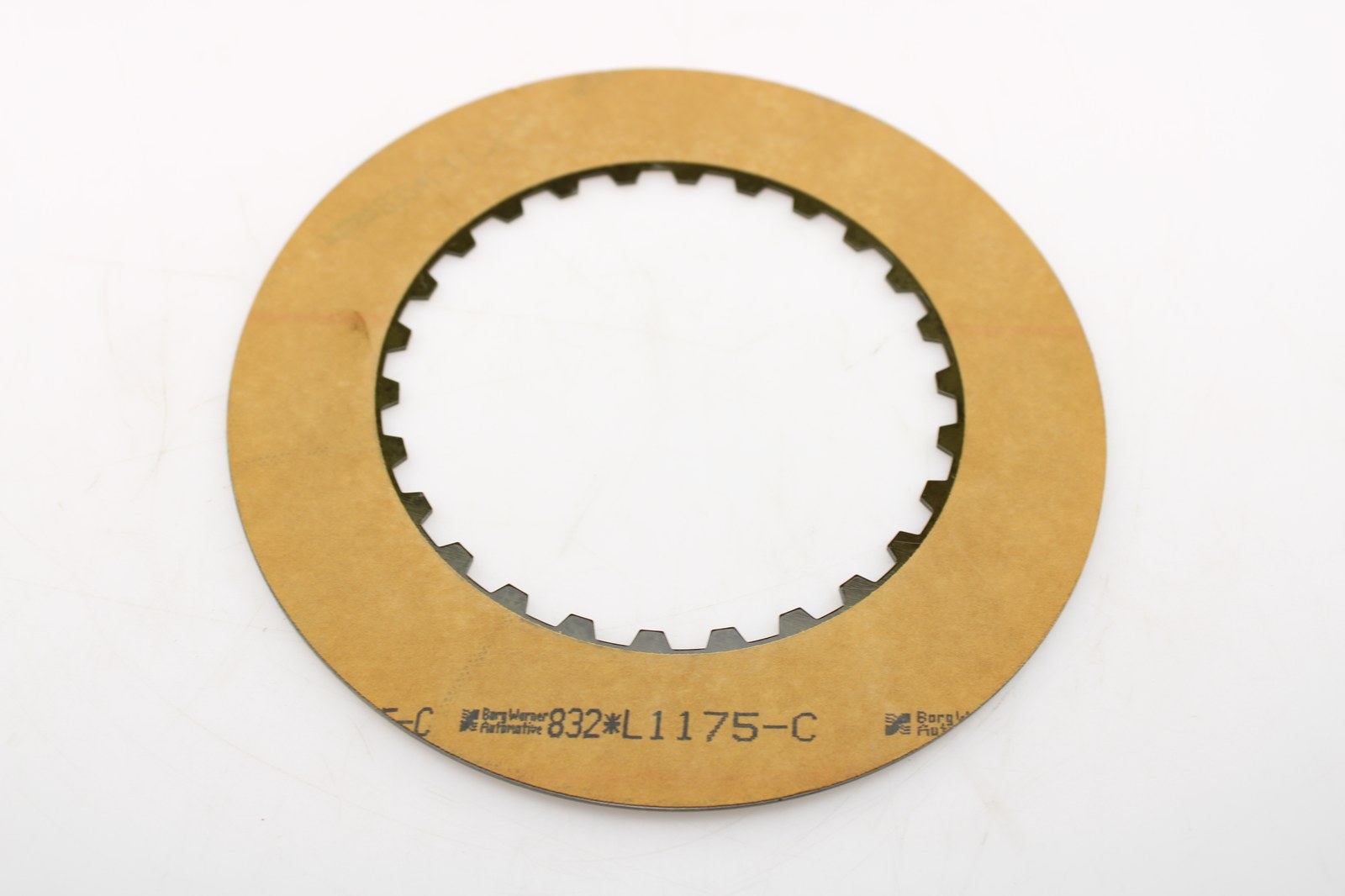

4T80E friction disc

The 4T80E automatic transmissions are used in a clutch packaged in oil and is responsible for the transmission of torque when starting the gear - its cladding determines the smoothness and repeatability of the gear shift.

The wear of the cladding is manifested by jerking when shifting gears, slipping the clutch package, delayed switching, increasing oil temperature and the presence of friction particles in the oil pan. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: friction-blade
• Number of teeth: 26
• Outer diameter: 151 mm
• Type of friction lining: two-sided cladding
• Tooth position: Internal teeth
• Thickness: 2 mm

Before buying, it is recommended to verify the fit after the 4T80E box model and to compare it with the element dismantled from the box. 4 pieces are usually used in one box.

Purpose

• Case type: 4T80E
• Box manufacturer: General Motors
• Type of box: automatic
• Number of gears: 4
