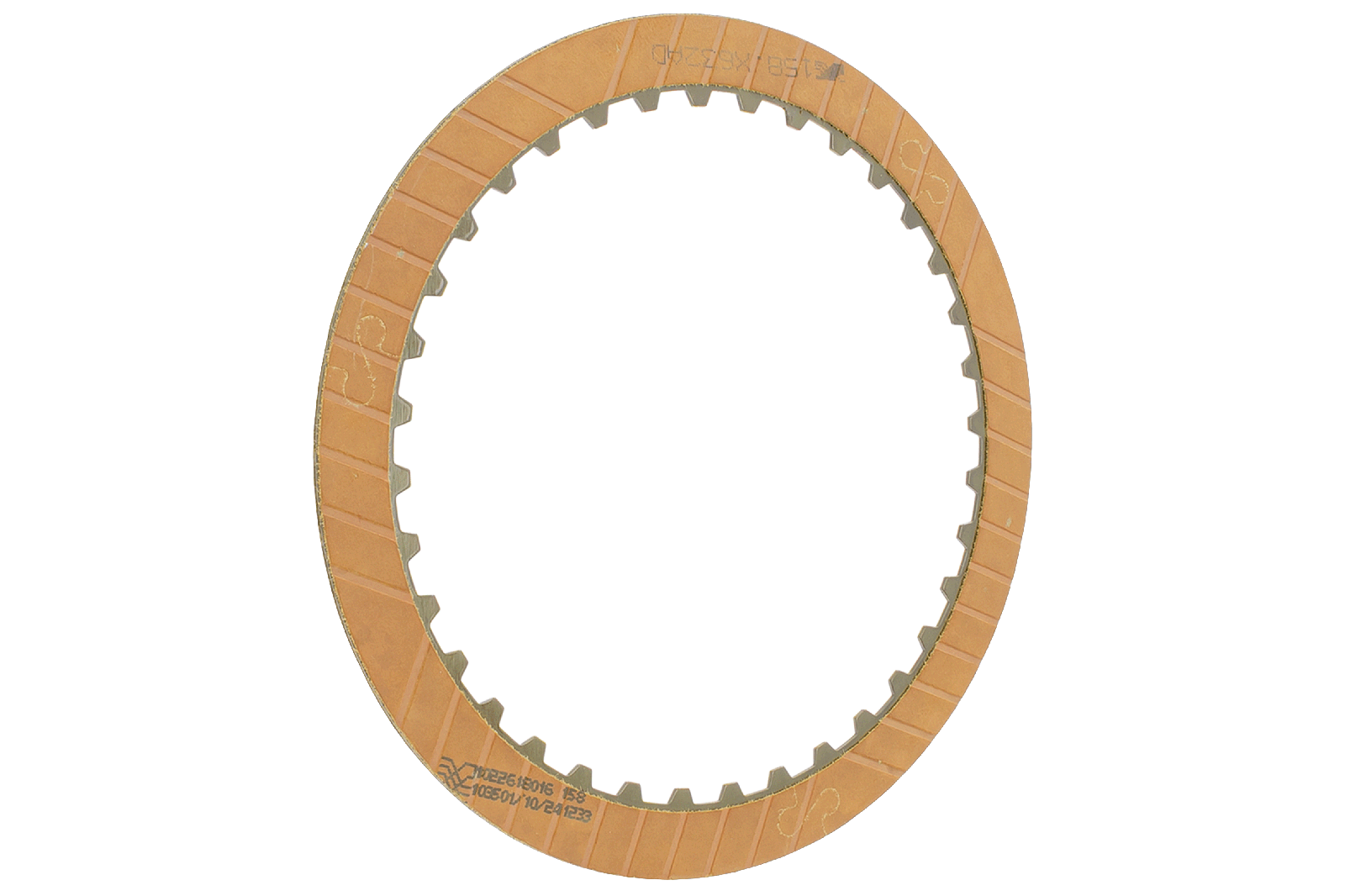

Tarcza cierna 6L80E 4-5-6 BorgWarner

Tarcza cierna przeznaczona do automatycznych skrzyń biegów 6L80 / 6L90. Pracuje w pakiecie sprzęgła zanurzonym w oleju i odpowiada za przenoszenie momentu obrotowego podczas załączania biegu — jej okładzina decyduje o płynności i powtarzalności zmiany przełożenia.

The wear of the cladding is manifested by jerking when shifting gears, slipping the clutch package, delayed switching, increasing oil temperature and the presence of friction particles in the oil pan. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: friction-blade
• Number of teeth: 36
• Outer diameter: 129.6 mm
• Fits the clutch: 4-5-6 Clutch
• Type of friction lining: two-sided cladding
• Friction surface: grooved pattern
• Quality / Manufacturer: BorgWarner
• Condition: new
• Tooth position: Internal teeth
• Thickness: 1.6 mm
• Commercial markings: 129.6X1.6

Before purchase, it is recommended to verify the matching of the 6L80 / 6L90 box model and a comparison with the element dismantled from the box.

Purpose

• Case type: 6L80 / 6L90
• Box manufacturer: General Motors
• Type of box: automatic
• Number of gears: 6
