Tarcza cierna A140

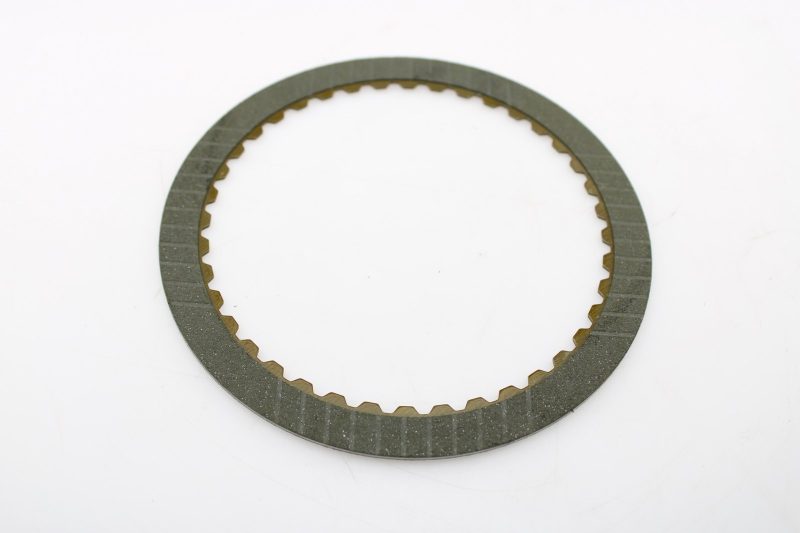

Friction disc for A140E / A140L / A141E / A142L / A240E / A240L gearboxes. It works in a clutch package immersed in oil and is responsible for the transmission of torque when starting the gear - its lining determines the smoothness and repeatability of the gear shift.

The wear of the cladding is manifested by jerking when shifting gears, slipping the clutch package, delayed switching, increasing oil temperature and the presence of friction particles in the oil pan. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: friction-blade
• Number of teeth: 40
• Outer diameter: 126 mm
• Type of friction lining: two-sided cladding
• Tooth position: Internal teeth
• Thickness: 1.85 mm
• Commercial markings: 126X1.85 / A242 / A245

Przed zakupem zalecana jest weryfikacja dopasowania po modelu skrzyni A140E / A140L / A141E / A142L / A240E / A240L i pozostałych oraz porównanie z elementem zdemontowanym ze skrzyni.

Purpose

• Case type: A140E / A140L / A141E / A142L / A240E / A240L / A241E / A241F / A241H / A241L / A242L / A243F / A243L / A244E / A244F oraz 10 innych
• Box manufacturer: Toyota
• Type of box: automatic
• Number of gears: 4
