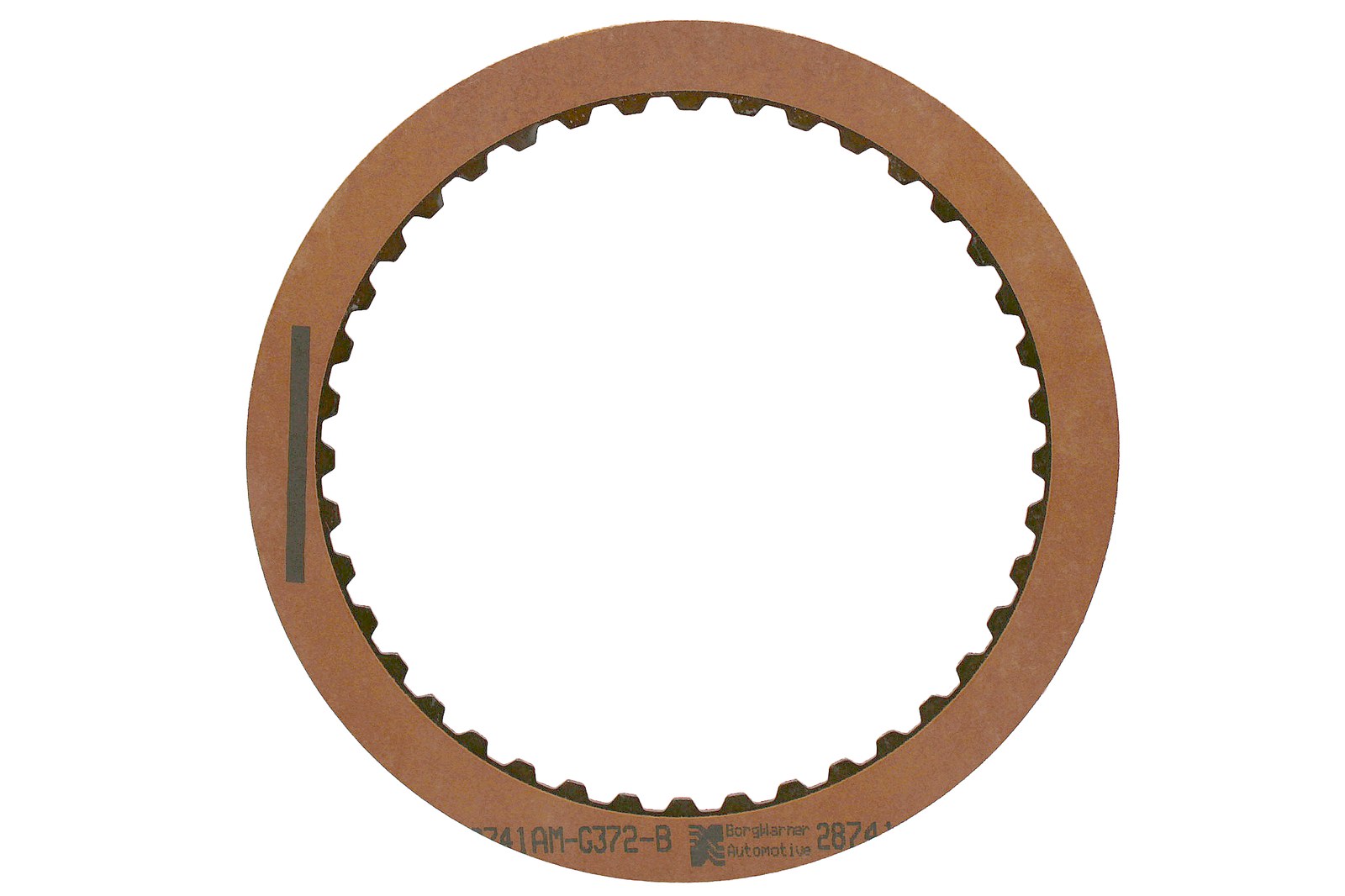

A340 friction disc

Friction disc for automatic transmissions 30-40LE / 30-40LS / 30-41LE / 30-42LE / 30-43LE / 30-80LE. It works in a clutch package immersed in oil and is responsible for the transmission of torque when starting the gear - its lining determines the smoothness and repeatability of the gear shift.

The wear of the cladding is manifested by jerking when shifting gears, slipping the clutch package, delayed switching, increasing oil temperature and the presence of friction particles in the oil pan. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: friction-blade
• Number of teeth: 40
• Outer diameter: 126 mm
• Type of friction lining: two-sided cladding
• Tooth position: Internal teeth
• Thickness: 1.90 mm
• Commercial markings: 126x1. 9 / A650 / AW / LS / 35-50

Before purchase, it is recommended to verify the matching after the 30-40LE / 30-40LS / 30-41LE / 30-42LE / 30-43LE / 30-80LE model and the other and a comparison with the element disassembled from the box.

Purpose

• Case type: 30-40LE / 30-40LS / 30-41LE / 30-42LE / 30-43LE / 30-80LE / 35-50LS / 35-51LS / A340E / A340F / A340H / A341E / A341F / A342E and 7 others
• Box manufacturer: Aisin Warner, Toyota, Chrysler, Mitsubishi
• Type of box: automatic
• Number of gears: 4
