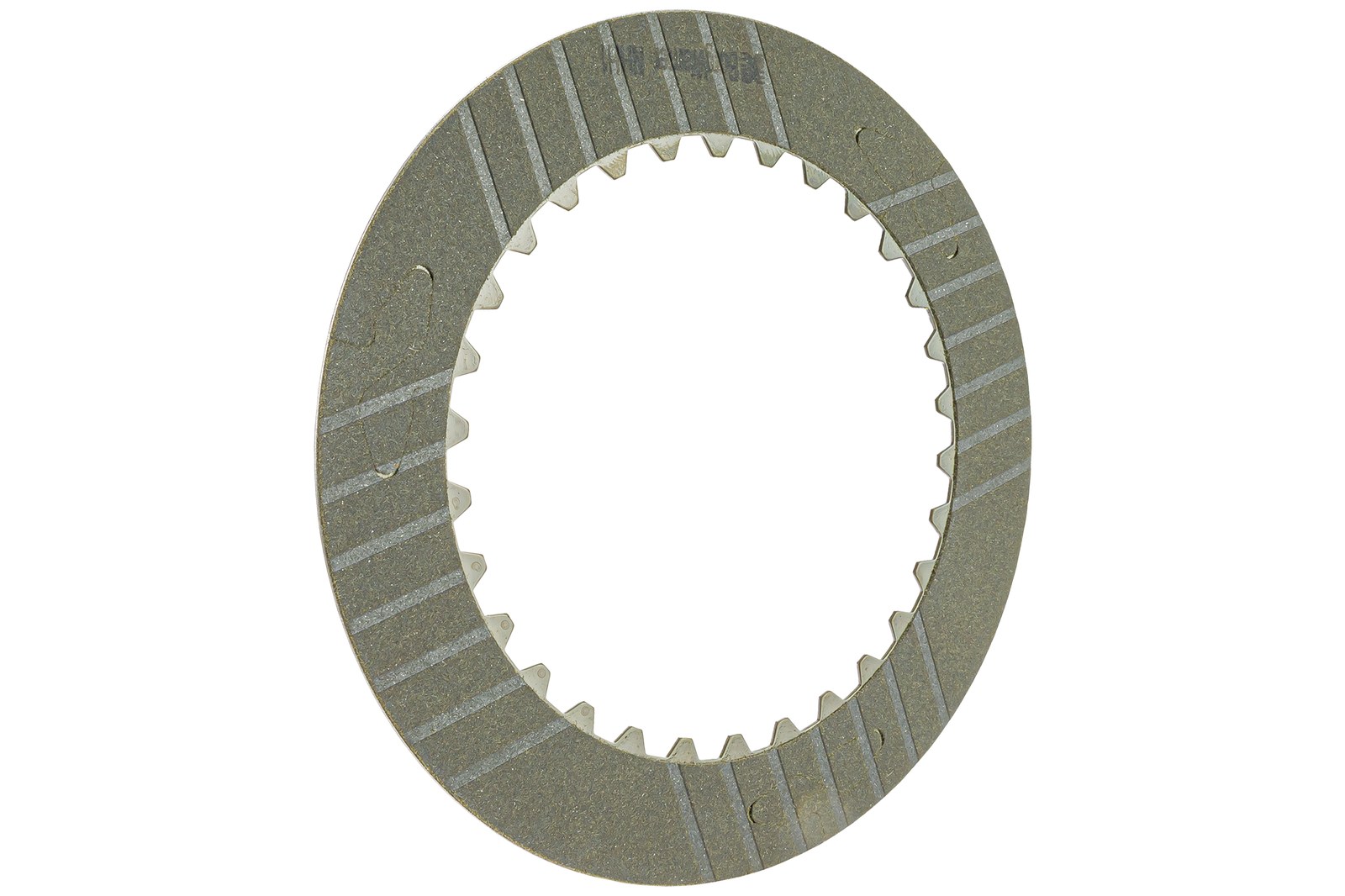

Tarcza cierna F5A51/V5A51

Tarcza cierna przeznaczona do automatycznych skrzyń biegów A5HF1 / A5HF3 / F5A42 / F5A51 / F5A5A / F5AH1. Pracuje w pakiecie sprzęgła zanurzonym w oleju i odpowiada za przenoszenie momentu obrotowego podczas załączania biegu — jej okładzina decyduje o płynności i powtarzalności zmiany przełożenia.

The wear of the cladding is manifested by jerking when shifting gears, slipping the clutch package, delayed switching, increasing oil temperature and the presence of friction particles in the oil pan. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: friction-blade
• Commercial markings: KMF5A / 122X1.7 / BORGWARNER

Before purchase, it is recommended to verify the matching of the A5HF1 / A5HF3 / F5A42 / F5A51 / F5A5A / F5AH1 and other box model and a comparison with the element disassembled from the box.

Purpose

• Case type: A5HF1 / A5HF3 / F5A42 / F5A51 / F5A5A / F5AH1 / R4A51 / R5A51 / V4A51 / V5A51 / W5A51
• Box manufacturer: Hyundai Motor Group, Mitsubishi
• Type of box: automatic
• Number of gears: 4
