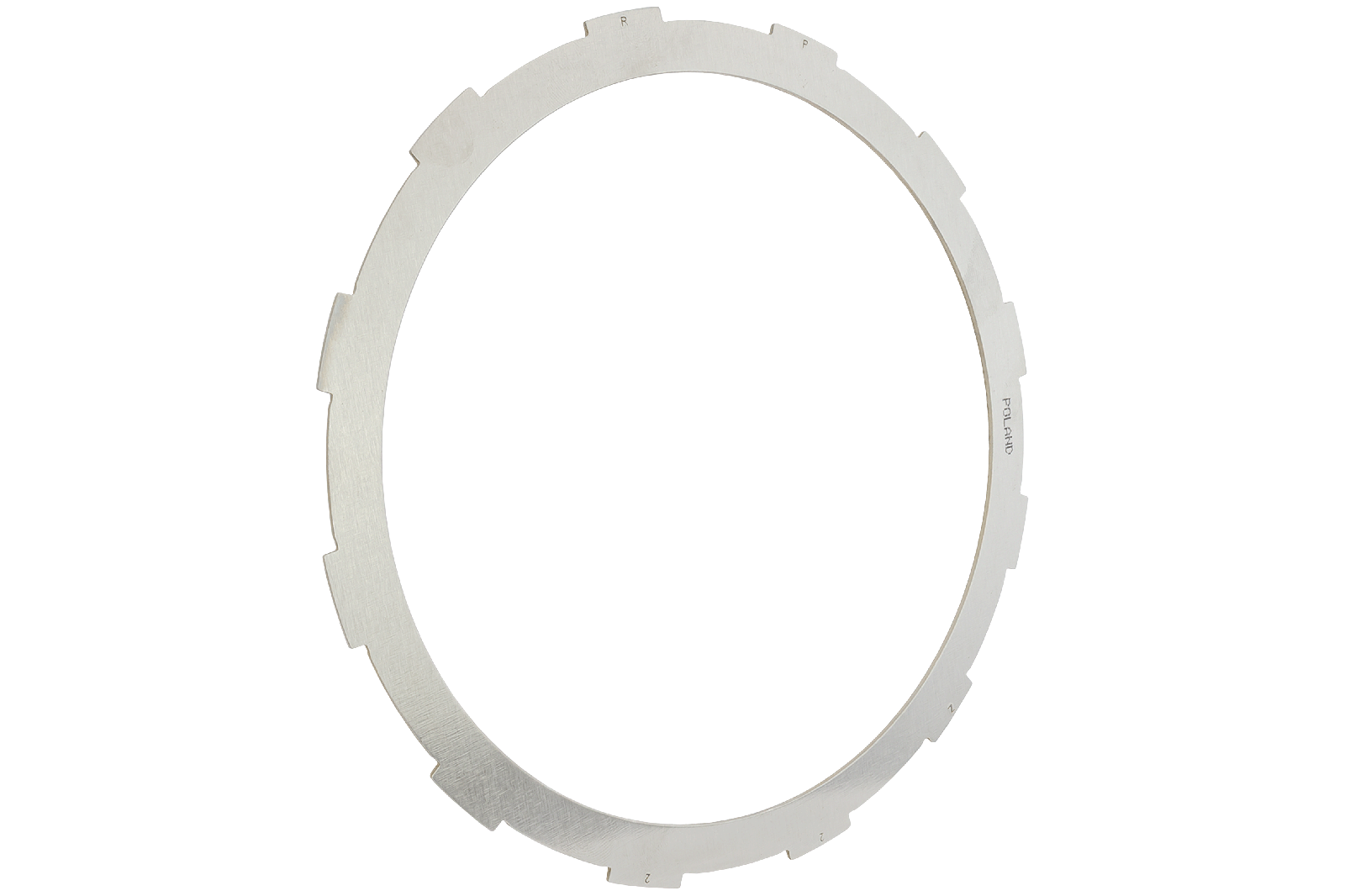

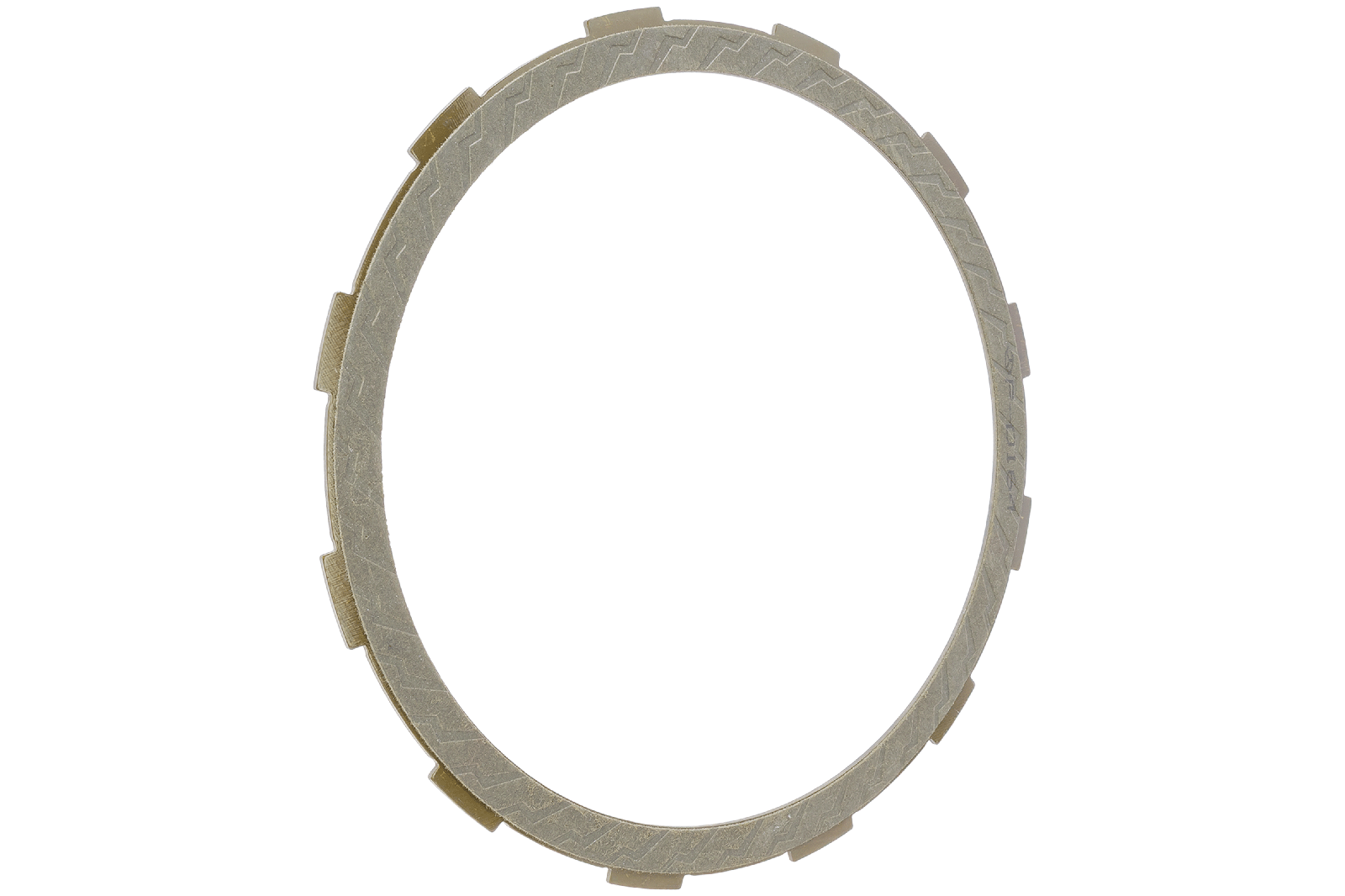

Tarcza cierna 722.6 B1/K1-CLUTCH BorgWarner

Tarcza cierna przeznaczona do automatycznych skrzyń biegów 722.6 / AMG SPEEDSHIFT R / W5A330 / W5A380 / W5A580 / W5J400. Pracuje w pakiecie sprzęgła zanurzonym w oleju i odpowiada za przenoszenie momentu obrotowego podczas załączania biegu — jej okładzina decyduje o płynności i powtarzalności zmiany przełożenia.

The wear of the cladding is manifested by jerking when shifting gears, slipping the clutch package, delayed switching, increasing oil temperature and the presence of friction particles in the oil pan. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: friction-blade
• Number of teeth: 12
• Internal diameter: 154 mm
• Fits the clutch: B1 & K1/C1
• Type of friction lining: one-sided cladding
• Quality / Manufacturer: BorgWarner
• Condition: new
• Tooth position: External teeth
• Thickness: 2.1 mm
• Commercial markings: 154X2.1 / FRICTION

Before purchase, it is recommended to verify the fit after the 722.6 / AMG Speedshift R / W5A330 / W5A380 / W5A580 / W5J400 model and a comparison with the element dismantled from the box.

Purpose

• Case type: 722.6 / AMG Speedshift R / W5A330 / W5A380 / W5A580 / W5J400
• Box manufacturer: Mercedes Benz, Chrysler
• Type of box: automatic
• Number of gears: 5

Zamienniki katalogowe: M140.FRP27, M140.FRP57.
