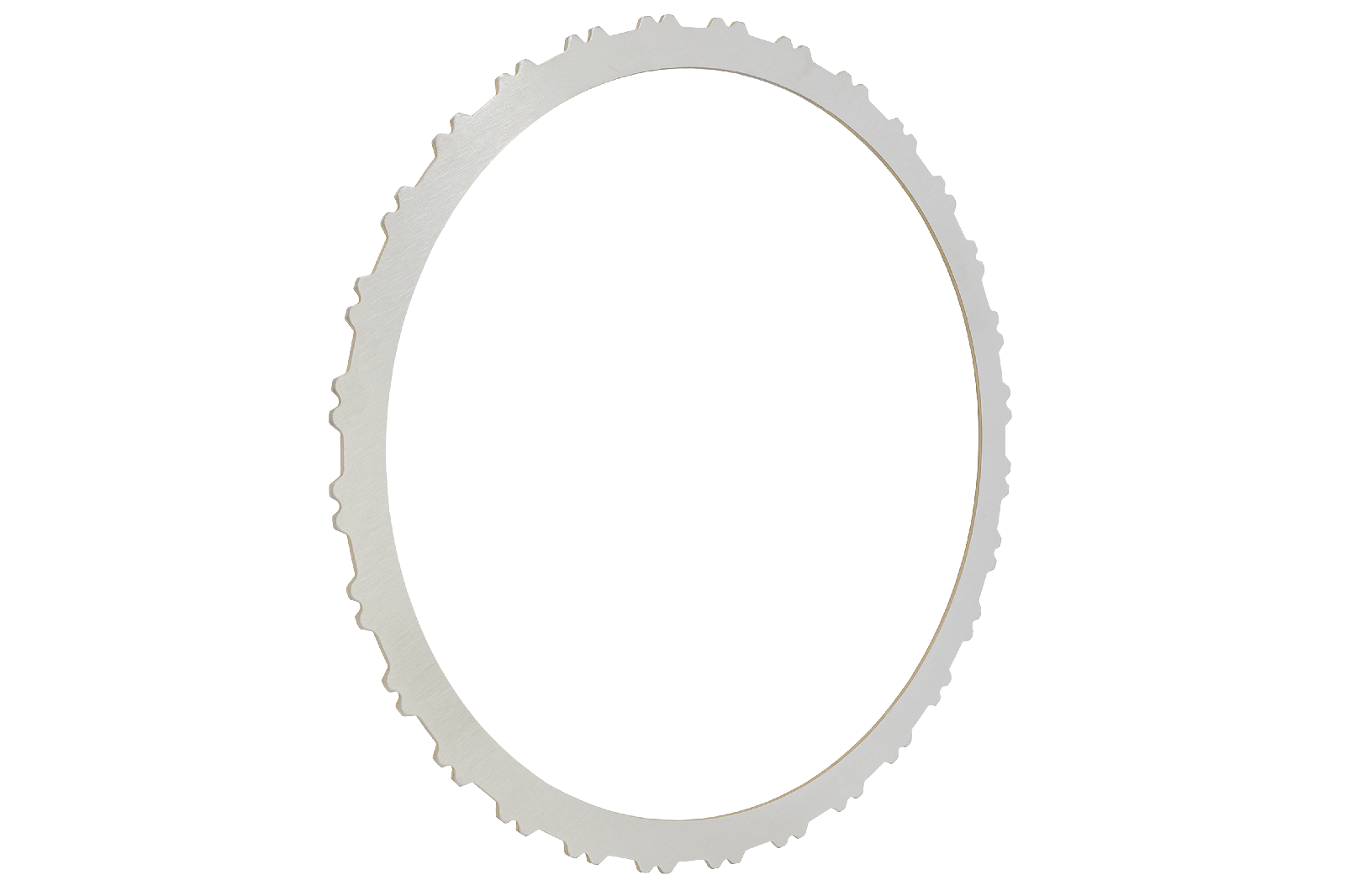

Tarcza stalowa 0BH/DQ500 K1-CLUTCH BorgWarner

Tarcza stalowa przeznaczona do skrzyń 0BH / 0BT / 0DL / 0DV. Pracuje w pakiecie sprzęgła naprzemiennie z tarczami ciernymi i odbiera ciepło powstające podczas załączania biegu.

The overheated steel disc is manifested by surface discoloration, warping, slipping of the package and jerking when shifting gears. Steel discs are replaced with friction. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: sheet steel
• Number of teeth: 30
• Internal diameter: 193.7 mm
• Fits the clutch: K1/C1
• Quality / Manufacturer: BorgWarner
• Condition: new
• Material: steel
• Tooth position: External teeth
• Thickness: 1.7 mm
• Commercial markings: 193.7X1.7

Before purchase, it is recommended to verify the matching after the 0BH / 0BT / 0DL / 0DV box model and a comparison with the element dismantled from the box.

Purpose

• Case type: 0BH / 0BT / 0DL / 0DV
• Box manufacturer: Volkswagen AG
• Type of box: Dual-clutch (DSG / DCT)
• Number of gears: 7
