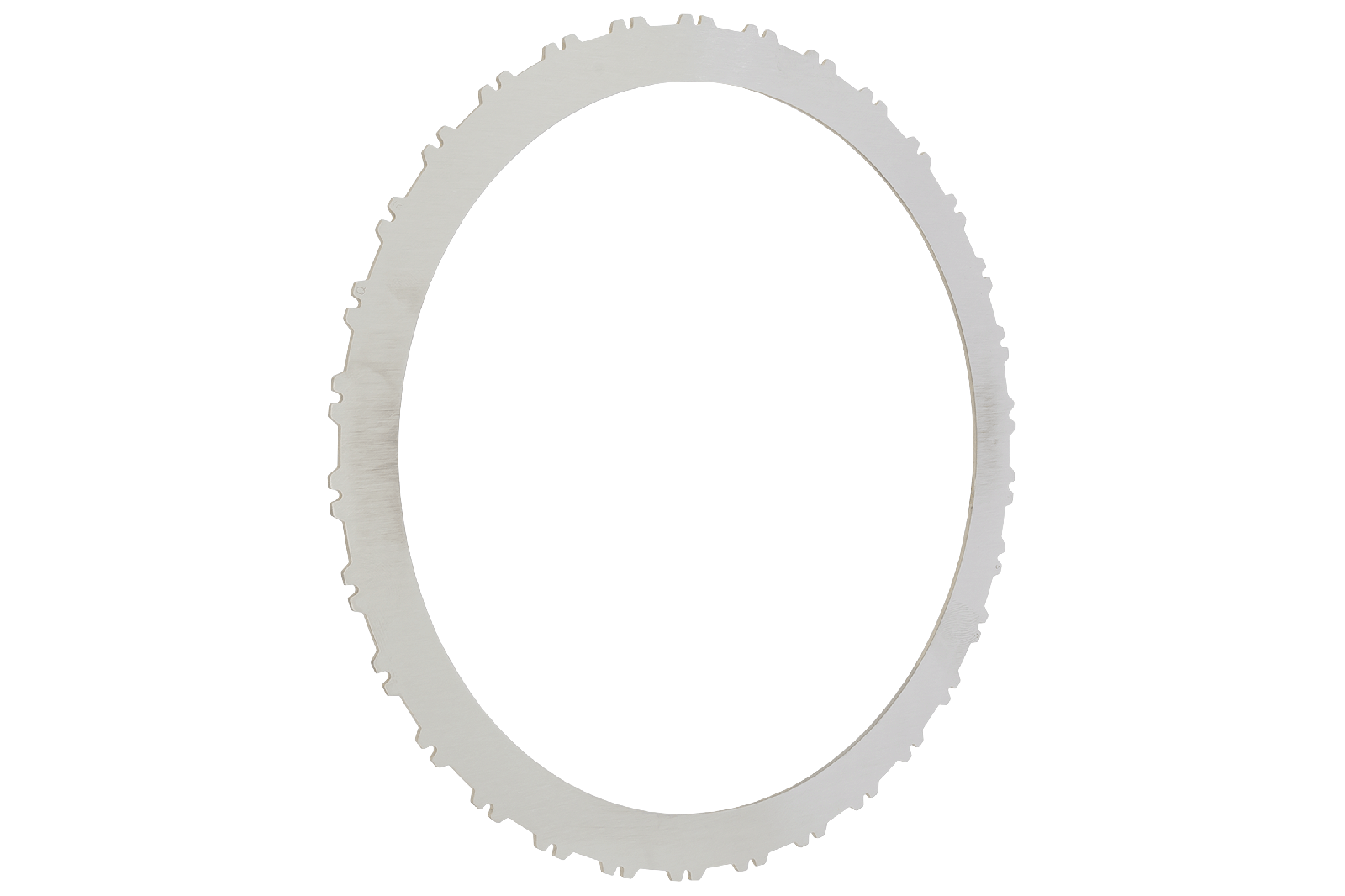

Tarcza stalowa 0DD/DQ400E K1-CLUTCH BorgWarner

Tarcza stalowa przeznaczona do skrzyń 0DD. Pracuje w pakiecie sprzęgła naprzemiennie z tarczami ciernymi i odbiera ciepło powstające podczas załączania biegu.

The overheated steel disc is manifested by surface discoloration, warping, slipping of the package and jerking when shifting gears. Steel discs are replaced with friction. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: sheet steel
• Number of teeth: 32
• Internal diameter: 165.9 mm
• Fits the clutch: K1/C1
• Quality / Manufacturer: BorgWarner
• Condition: new
• Material: steel
• Tooth position: External teeth
• Thickness: 1.7 mm
• Commercial markings: 165.9X1.7

Before buying, it is recommended to verify the fit after the 0DD box model and to compare it with the element dismantled from the box.

Purpose

• Case type: 0DD
• Box manufacturer: Volkswagen AG
• Type of box: Hybrid / Electric
• Number of gears: 6
