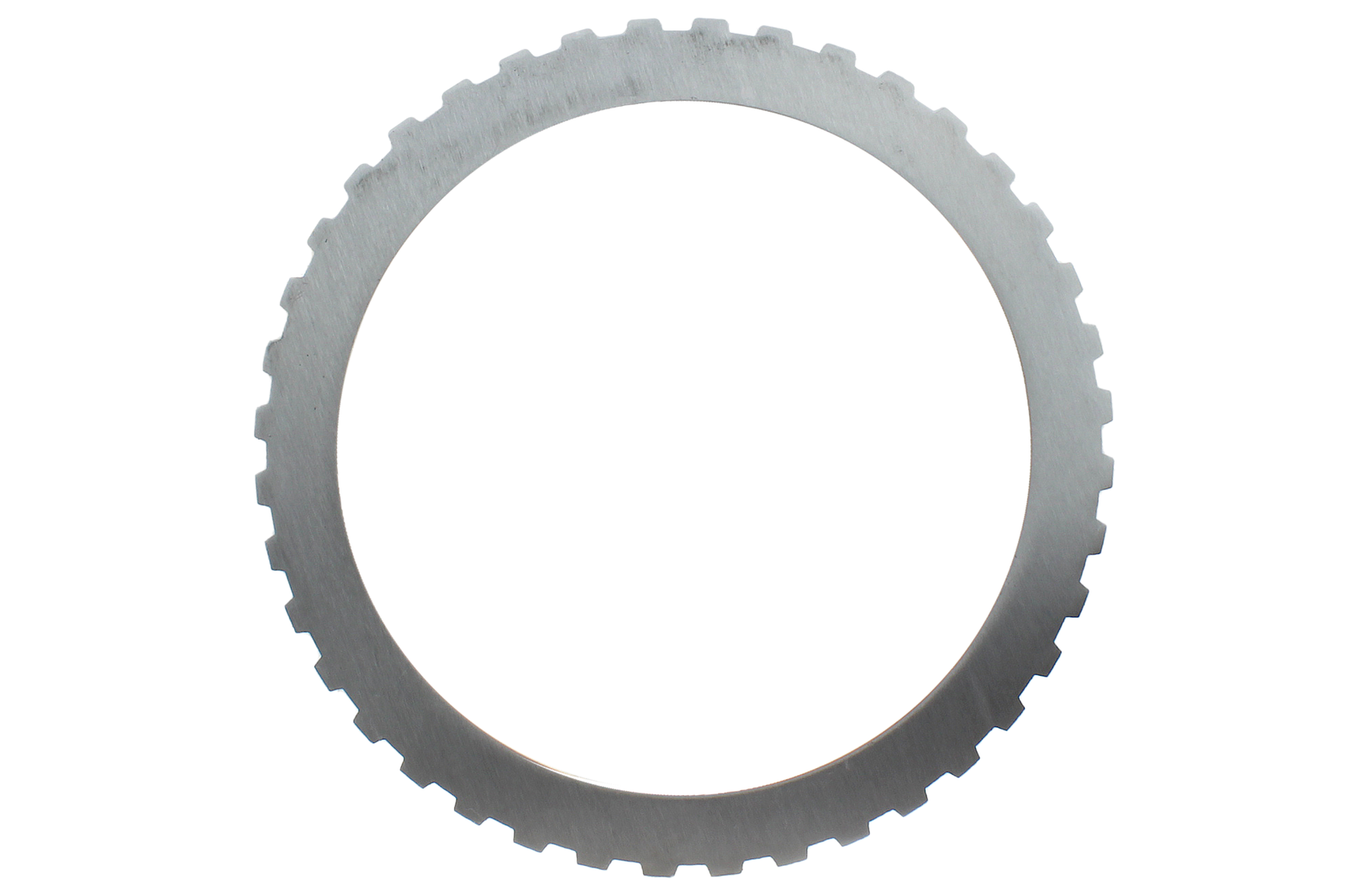

Tarcza stalowa 09G/TF60SN K3 Allomatic

Tarcza stalowa przeznaczona do skrzyń 09G / 09K / 09M / AS60T / AT6 / GA6F21WA. Pracuje w pakiecie sprzęgła naprzemiennie z tarczami ciernymi i odbiera ciepło powstające podczas załączania biegu.

The overheated steel disc is manifested by surface discoloration, warping, slipping of the package and jerking when shifting gears. Steel discs are replaced with friction. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: sheet steel
• Number of teeth: 40
• Additional information: 3. i 6. bieg oraz bieg wsteczny
• Internal diameter: 130.8 mm
• Fits the clutch: K3/C3
• Quality / Manufacturer: Allomatic
• Material: steel
• Tooth position: External teeth
• Thickness: 1.8 mm
• Commercial markings: 21DF1 / 21DF4 / HD

Before purchase, it is recommended to verify the matching after the 09G / 09K / 09M / AS60T / AT6 / GA6F21WA and other box model and a comparison with the element dismantled from the box.

Purpose

• Case type: 09G / 09K / 09M / AS60T / AT6 / GA6F21WA / TF-60SN / TF-61SN / TF-62SN / TF-63SN / TF-64SN / TF-65SN / TF-70SC
• Box manufacturer: Volkswagen AG, Fiat, PSA Peugeot / Citroen, BMW, Aisin Warner
• Type of box: automatic
• Number of gears: 6

Zamienniki katalogowe: 09G.STP55.
