Steel disc 6L80E 169.5x2.3 mm 24z
Steel disc 6L80E 169.5x2.3 mm 24z
58,20 bad
Poprzednia najniższa cena: 58,20 zł.
In stock
1
Osoba ogląda teraz ten produkt!
Shipping today
Description

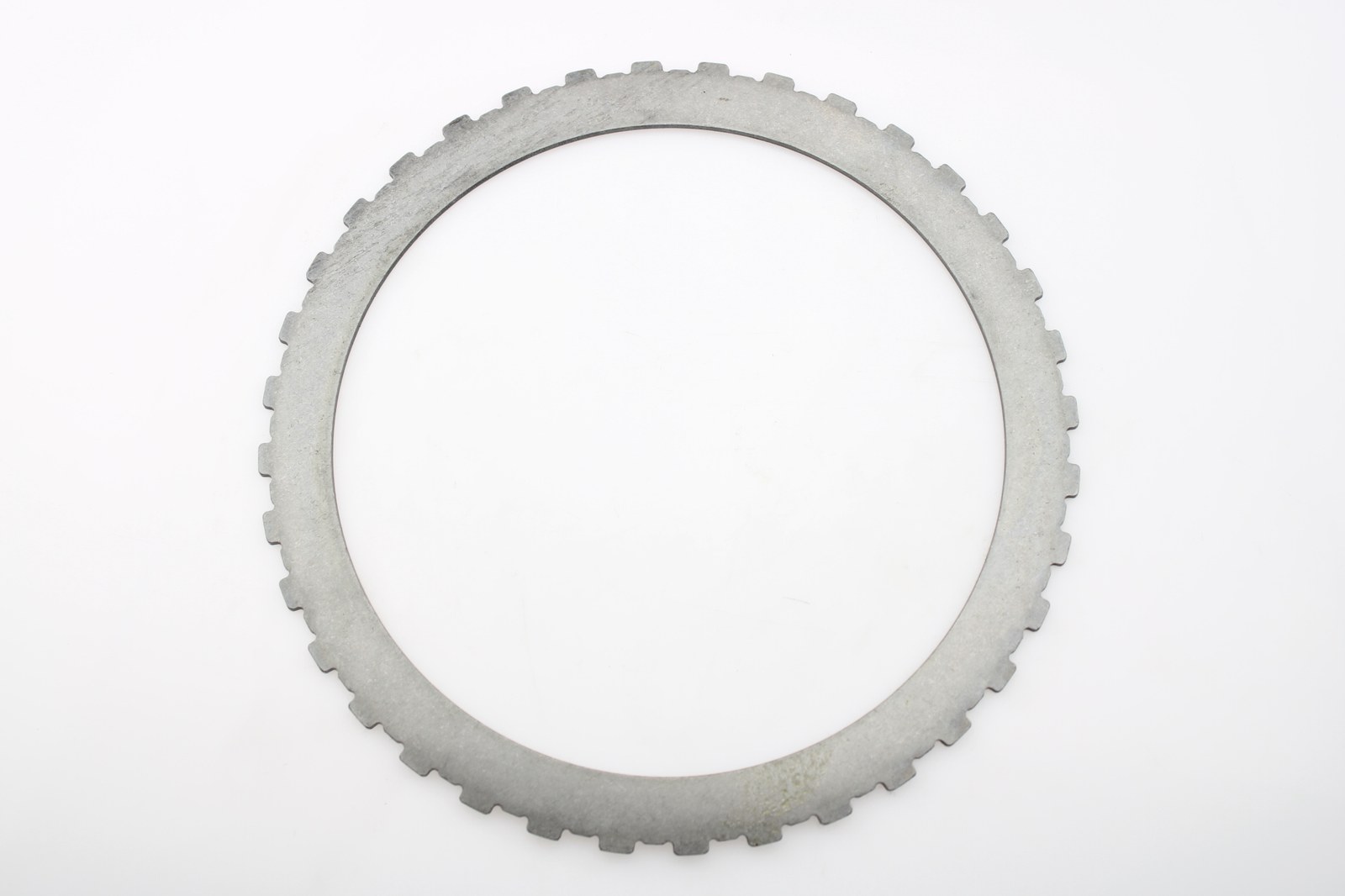

Tarcza stalowa 6L80
Tarcza stalowa przeznaczona do skrzyń 6L80 / 6L90. Pracuje w pakiecie sprzęgła naprzemiennie z tarczami ciernymi i odbiera ciepło powstające podczas załączania biegu.
The overheated steel disc is manifested by surface discoloration, warping, slipping of the package and jerking when shifting gears. Steel discs are replaced with friction. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.
Technical data
- Product type: sheet steel
- Number of teeth: 9
- Internal diameter: 156 mm
- Tooth position: External teeth
- Thickness: 1.70 mm
- Commercial markings: 6L80E / 169.5X2.3 / 24Z
Before purchase, it is recommended to verify the matching of the 6L80 / 6L90 box model and a comparison with the element dismantled from the box.
Purpose
- Case type: 6L80 / 6L90
- Box manufacturer: General Motors
- Type of box: automatic
- Number of gears: 6
Additional information
| TYP PRODUKTU |
sheet steel |
|---|---|
| TRANSMISSION TYPE |
6L80 / 6L90 |
| OZNACZENIA HANDLOWE |
6L80E / 169.5X2.3 / 24Z |
| PRODUCENT SKRZYNI |
General Motors |
| LICZBA BIEGÓW |
6 |
| INSIDE DIAMETER |
156 mm |
| THICKNESS |
1.70 mm |
| LICZBA ZĘBÓW |
9 |
| POŁOŻENIE ZĘBÓW |
External teeth |
