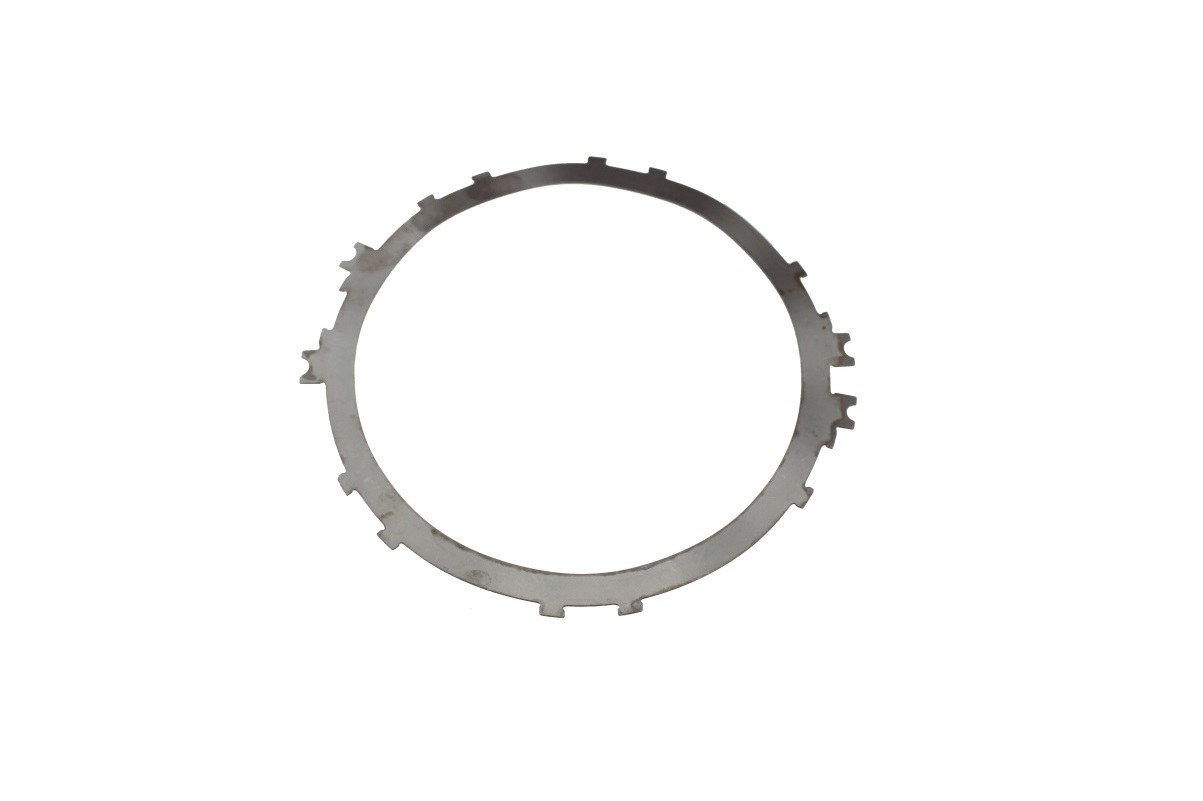

Tarcza stalowa 6T30

Tarcza stalowa przeznaczona do skrzyń 6T40 Generation 1 & 2 / 6T45 Generation 1 & 2 / 6T50 Generation 1 & 2. Pracuje w pakiecie sprzęgła naprzemiennie z tarczami ciernymi i odbiera ciepło powstające podczas załączania biegu.

The overheated steel disc is manifested by surface discoloration, warping, slipping of the package and jerking when shifting gears. Steel discs are replaced with friction. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: sheet steel
• Number of teeth: 14
• Internal diameter: 193 mm
• Tooth position: External teeth
• Thickness: 0.85 mm
• Commercial markings: 193X0.85 / 14Z

Before purchase, it is recommended to verify the matching of the 6T40 Generation 1 & 2 / 6T45 Generation 1 & 2 / 6T50 Generation 1 & 2 box model and a comparison with the element disassembled from the box.

Purpose

• Case type: 6T40 Generation 1 & 2 / 6T45 Generation 1 & 2 / 6T50 Generation 1 & 2
• Box manufacturer: General Motors
• Type of box: automatic
• Number of gears: 6
