A750 steel disc 149.1x168x2.45 mm
A750 steel disc 149.1x168x2.45 mm
24,46 bad
Poprzednia najniższa cena: 24,46 zł.
⏱ Delivery: up to 5 business days.
In stock
Tarcza stalowa A750/A760 C3

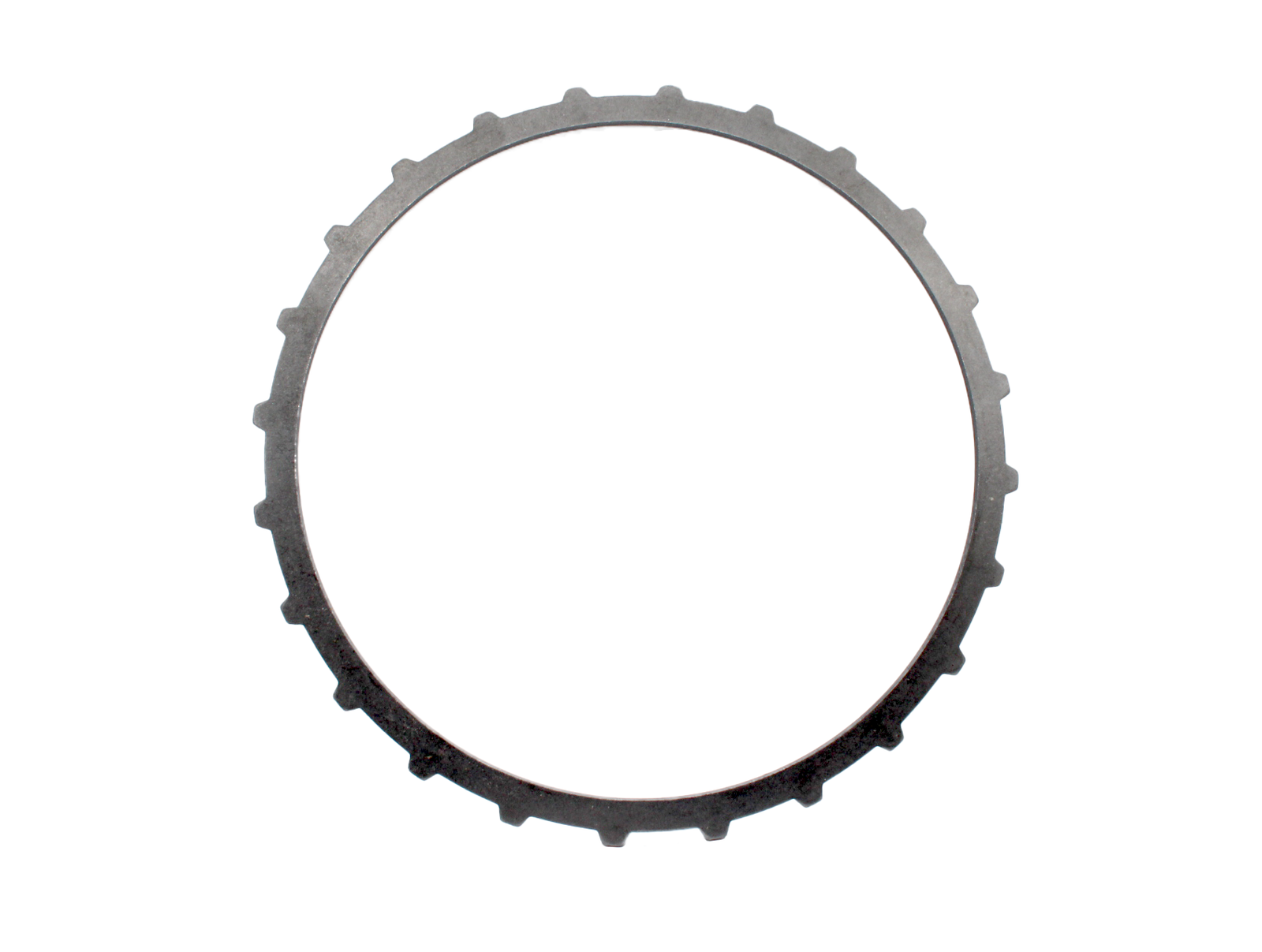

Steel disc for A750E / A750F / A750H / A760E / A760F / A760H. It works in a clutch package alternately with friction discs and receives heat generated when starting the gear.
The overheated steel disc is manifested by surface discoloration, warping, slipping of the package and jerking when shifting gears. Steel discs are replaced with friction. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.
Technical data
- Product type: sheet steel
- Number of teeth: 24
- Internal diameter: 149.1 mm
- Outer diameter: 168 mm
- Tooth position: External teeth
- Thickness: 2.45 mm
- Commercial markings: 149.1X168X2.45
Przed zakupem zalecana jest weryfikacja dopasowania po modelu skrzyni A750E / A750F / A750H / A760E / A760F / A760H i pozostałych oraz porównanie z elementem zdemontowanym ze skrzyni. W jednej skrzyni stosowane są zwykle 5 szt.
Purpose
- Case type: A750E / A750F / A750H / A760E / A760F / A760H / A761E / A761H / R5AWF / TB-50LS / TB-60LS / TB-60SN / TB-61SN / V5AWF
- Box manufacturer: Toyota, Mitsubishi, Aisin Warner, Isuzu
- Type of box: automatic
- Number of gears: 5
| TYP PRODUKTU |
sheet steel |
|---|---|
| TRANSMISSION TYPE |
A750E / A750F / A750H / A760E / A760F / A760H / A761E / A761H / R5AWF / TB-50LS / TB-60LS / TB-60SN / TB-61SN / V5AWF |
| OZNACZENIA HANDLOWE |
149.1X168X2.45 |
| PRODUCENT SKRZYNI |
Toyota, Mitsubishi, Aisin Warner, Isuzu |
| LICZBA BIEGÓW |
5 |
| OUTSIDE DIAMETER |
168 mm |
| INSIDE DIAMETER |
149.1 mm |
| THICKNESS |
2.45 mm |
| LICZBA ZĘBÓW |
24 |
| POŁOŻENIE ZĘBÓW |
External teeth |
