TARCZA STALOWA A750 150X1.8 MM 24T A750E/A750F/A750H
TARCZA STALOWA A750 150X1.8 MM 24T A750E/A750F/A750H
13,17 bad
Poprzednia najniższa cena: 13,17 zł.
⏱ Delivery: up to 5 business days.
In stock
Tarcza stalowa A750/761 C2

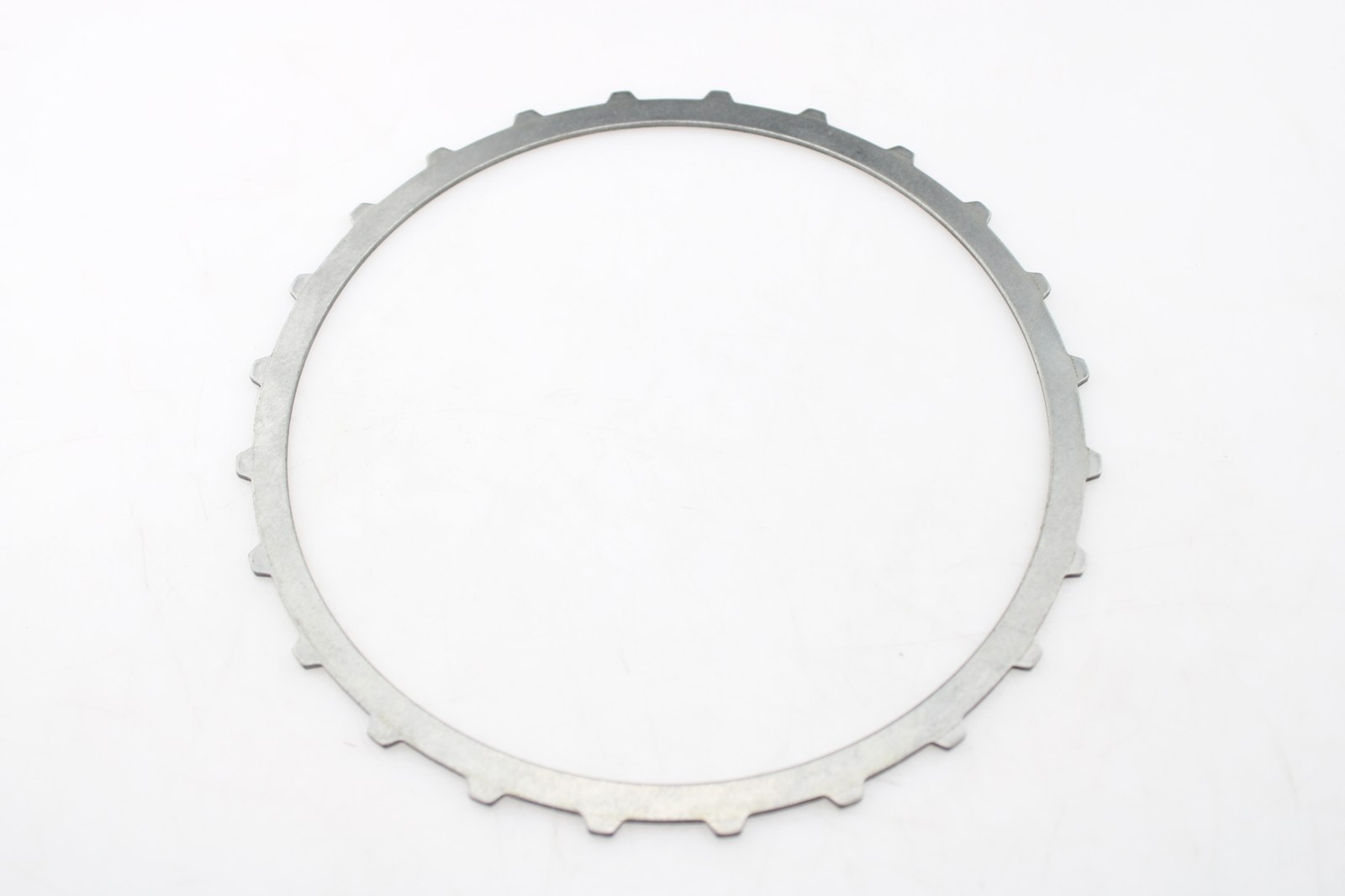

Steel disc for A750E / A750F / A750H / A760E / A760F / A760H. It works in a clutch package alternately with friction discs and receives heat generated when starting the gear.
The overheated steel disc is manifested by surface discoloration, warping, slipping of the package and jerking when shifting gears. Steel discs are replaced with friction. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.
Technical data
- Product type: sheet steel
- Number of teeth: 24
- Outer diameter: 150 mm
- Tooth position: External teeth
- Thickness: 1.8 mm
- Commercial markings: 150X1.8
Before purchase, it is recommended to verify the fit after the A750E / A750F / A750H / A760E / A760F / A760H and other box model and a comparison with the element disassembled from the box.
Purpose
- Case type: A750E / A750F / A750H / A760E / A760F / A760H / A761E / A761H / R5AWF / TB-50LS / TB-60LS / TB-60SN / TB-61SN / V5AWF
- Box manufacturer: Toyota, Mitsubishi, Aisin Warner, Isuzu
- Type of box: automatic
- Number of gears: 5
| TYP PRODUKTU |
sheet steel |
|---|---|
| TRANSMISSION TYPE |
A750E / A750F / A750H / A760E / A760F / A760H / A761E / A761H / R5AWF / TB-50LS / TB-60LS / TB-60SN / TB-61SN / V5AWF |
| OZNACZENIA HANDLOWE |
150X1.8 |
| PRODUCENT SKRZYNI |
Toyota, Mitsubishi, Aisin Warner, Isuzu |
| LICZBA BIEGÓW |
5 |
| OUTSIDE DIAMETER |
150 mm |
| THICKNESS |
1.8 mm |
| LICZBA ZĘBÓW |
24 |
| POŁOŻENIE ZĘBÓW |
External teeth |
