AB60E steel disc

Steel disc for AB60E / AB60F / TB-68LS boxes. It works in a clutch package alternately with friction discs and receives heat generated when starting the gear.

The overheated steel disc is manifested by surface discoloration, warping, slipping of the package and jerking when shifting gears. Steel discs are replaced with friction. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: sheet steel
• Number of teeth: 24
• Internal diameter: 165 mm
• Tooth position: External teeth
• Thickness: 1.8 mm
• Commercial markings: 165x1. 8

Before purchase, it is recommended to verify the fit after the AB60E / AB60F / TB-68LS box model and a comparison with the element dismantled from the box. 5 pieces are usually used in one box.

Purpose

• Case type: AB60E / AB60F / TB-68LS
• Box manufacturer: Toyota, Aisin Warner
• Type of box: automatic
• Number of gears: 6

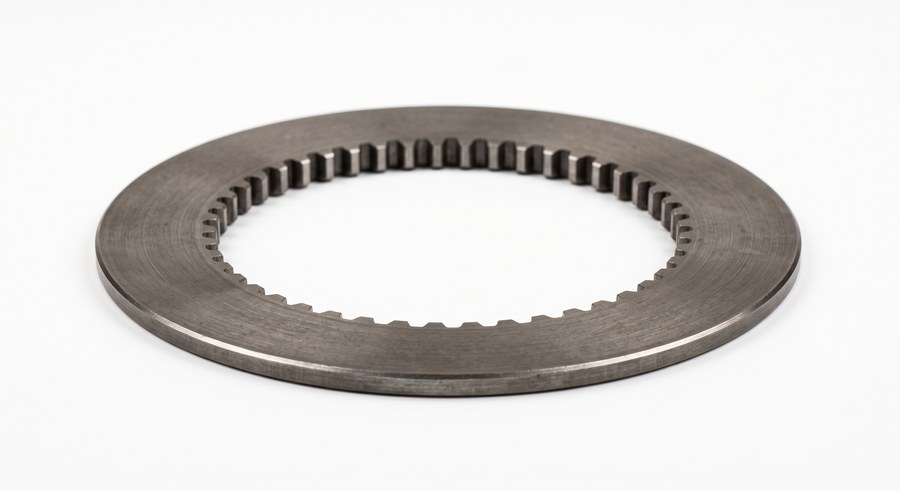

Illustrative photo - does not show the actual appearance of the product. Real photos soon. Please follow the catalog number and technical data before purchasing.
