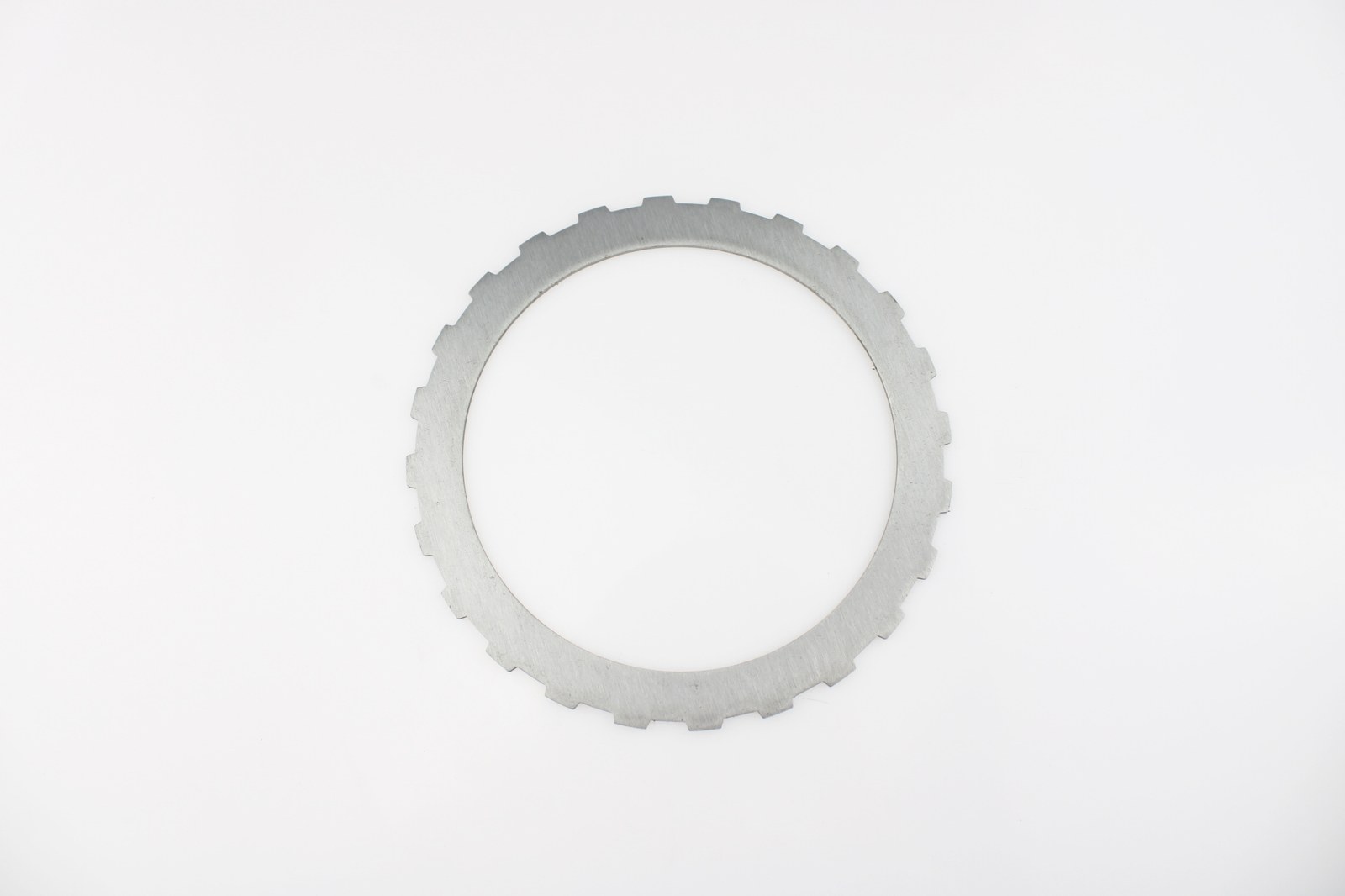

Steel disc 5HP30/24 E1 F

Steel disc for 01L / 5HP24 / 5HP24A / 5HP30 / A5S 440Z / A5S 560Z boxes. It works in a clutch package alternately with friction discs and receives heat generated when starting the gear.

The overheated steel disc is manifested by surface discoloration, warping, slipping of the package and jerking when shifting gears. Steel discs are replaced with friction. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: sheet steel
• Number of teeth: 24
• Internal diameter: 119 mm
• Tooth position: External teeth
• Thickness: 1.75 mm
• Commercial markings: 119x1.75

Before purchase, it is recommended to verify the matching of the 01L / 5HP24 / 5HP24A / 5HP30 / A5S 440Z / A5S 560Z box model and a comparison with the element dismantled from the box.

Purpose

• Case type: 01L / 5HP24 / 5HP24A / 5HP30 / A5S 440Z / A5S 560Z
• Box manufacturer: Volkswagen AG, ZF, BMW
• Type of box: automatic
• Number of gears: 5
