Steel disc JR405E

Steel disc for JR405E / RC4A-EL boxes. It works in a clutch package alternately with friction discs and receives heat generated when starting the gear.

The overheated steel disc is manifested by surface discoloration, warping, slipping of the package and jerking when shifting gears. Steel discs are replaced with friction. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: sheet steel
• Number of teeth: 8
• Internal diameter: 106mm
• Tooth position: External teeth
• Thickness: 2.10mm
• Commercial markings: 106x2.1

Before purchase, it is recommended to verify the matching of the JR405E / RC4A-EL box model and a comparison with the element dismantled from the box. 6 pcs are usually used in one box.

Purpose

• Case type: JR405E / RC4A-EL
• Box manufacturer: Jatco, Mazda
• Type of box: automatic
• Number of gears: 4

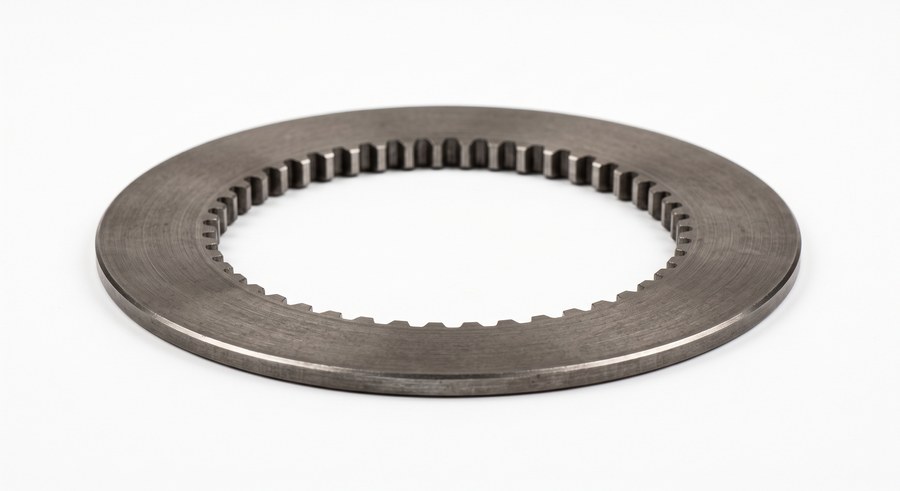

Illustrative photo - does not show the actual appearance of the product. Real photos soon. Please follow the catalog number and technical data before purchasing.
