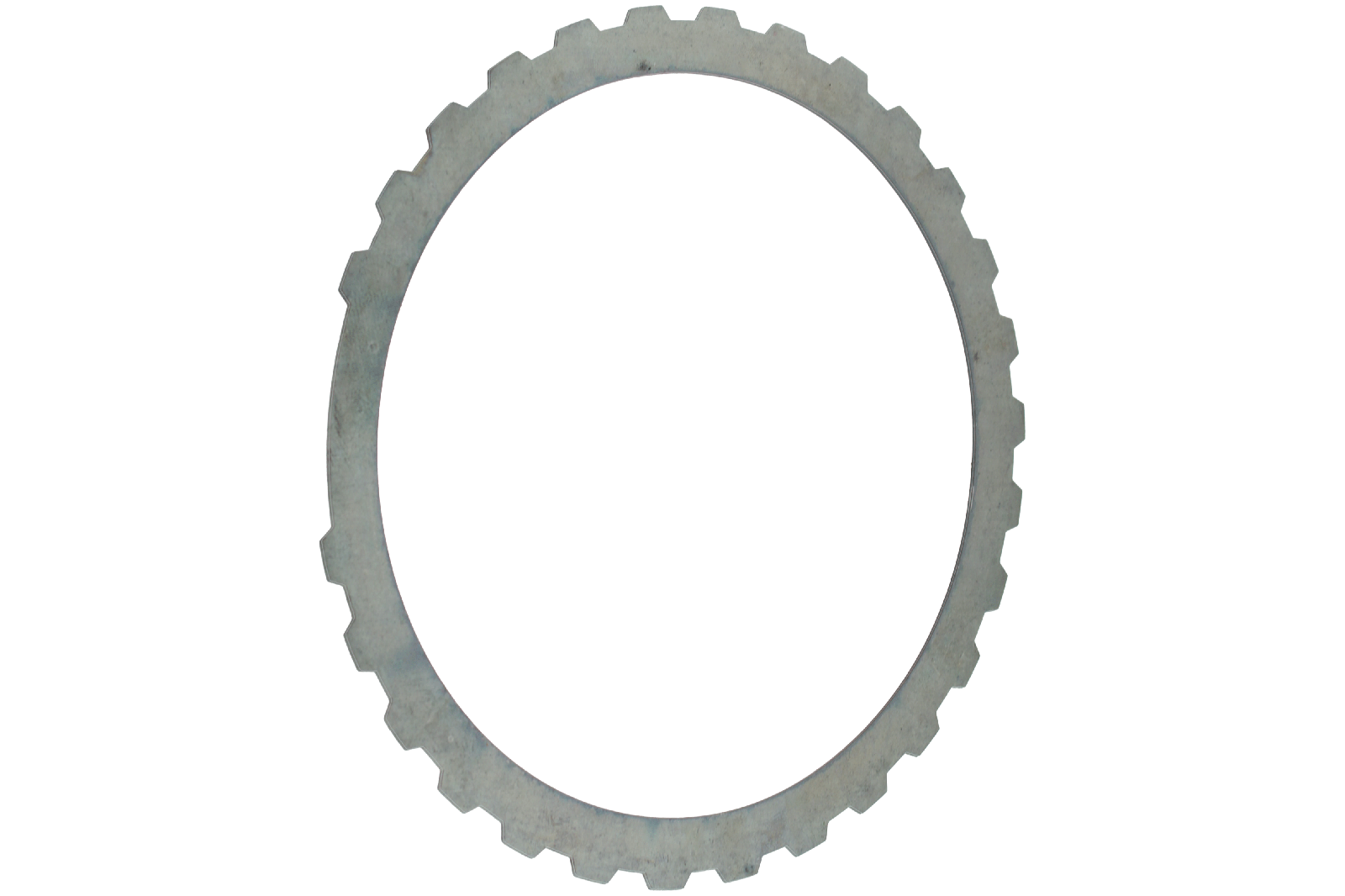

Tarcza stalowa 6HP26 B-CLUTCH ZF

Tarcza stalowa przeznaczona do skrzyń 09E / 0B6 / 6HP26 / 6HP26A61 / 6HP26X / 6HP28. Pracuje w pakiecie sprzęgła naprzemiennie z tarczami ciernymi i odbiera ciepło powstające podczas załączania biegu.

The overheated steel disc is manifested by surface discoloration, warping, slipping of the package and jerking when shifting gears. Steel discs are replaced with friction. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: sheet steel
• Number of teeth: 28
• Internal diameter: 164 mm
• Fits the clutch: B coupling
• Quality / Manufacturer: ZF
• Condition: new
• Material: steel
• Tooth position: External teeth
• Thickness: 1 mm
• Wavy shield: like this

Before buying, it is recommended to verify the matching after the 09E / 0B6 / 6HP26 / 6HP26A61 / 6HP26X / 6HP28 and other box model and a comparison with the element disassembled from the box.

Purpose

• Case type: 09E / 0B6 / 6HP26 / 6HP26A61 / 6HP26X / 6HP28 / 6HP28A61 / 6HP28AF / 6HP28X / 6R60 / 6R75 / 6R80 / GA6HP26Z
• Box manufacturer: Volkswagen AG, ZF, Ford, BMW
• Type of box: automatic
• Number of gears: 6
