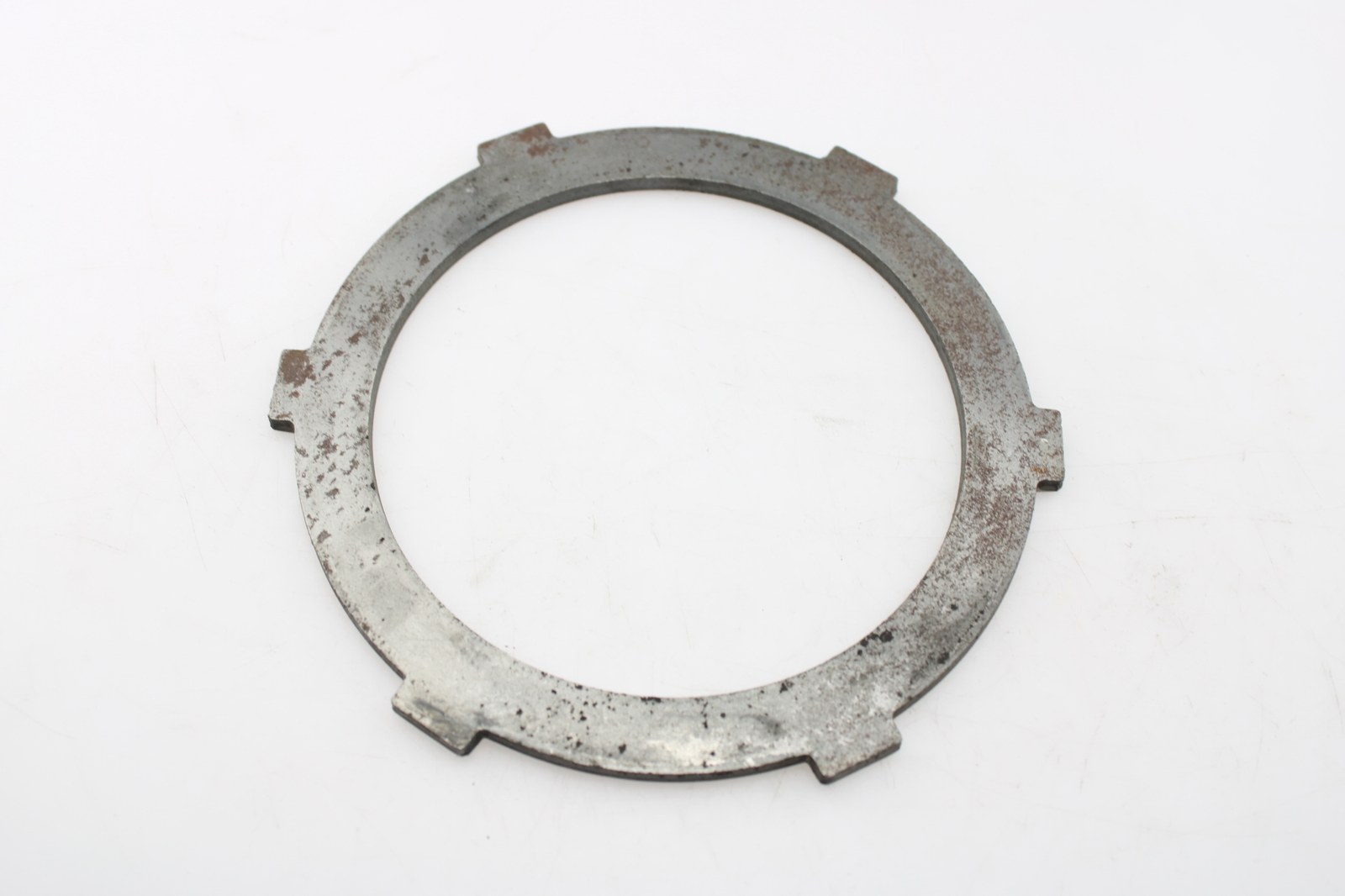

Tarcza stalowa A340

Tarcza stalowa przeznaczona do skrzyń 30-40LE / 30-40LS / 30-41LE / 30-42LE / 30-43LE / 30-80LE. Pracuje w pakiecie sprzęgła naprzemiennie z tarczami ciernymi i odbiera ciepło powstające podczas załączania biegu.

The overheated steel disc is manifested by surface discoloration, warping, slipping of the package and jerking when shifting gears. Steel discs are replaced with friction. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: sheet steel
• Number of teeth: 6
• Internal diameter: 105 mm
• Tooth position: External teeth
• Thickness: 3.95 mm
• Commercial markings: 105X3.95 / 6Z

Before purchase, it is recommended to verify the matching after the 30-40LE / 30-40LS / 30-41LE / 30-42LE / 30-43LE / 30-80LE model and the other and a comparison with the element disassembled from the box.

Purpose

• Case type: 30-40LE / 30-40LS / 30-41LE / 30-42LE / 30-43LE / 30-80LE / A340E / A340F / A340H / A341E / A341H / A342E / A343E / A343F and 3 others
• Box manufacturer: Aisin Warner, Toyota, Chrysler, Mitsubishi
• Type of box: automatic
• Number of gears: 4
