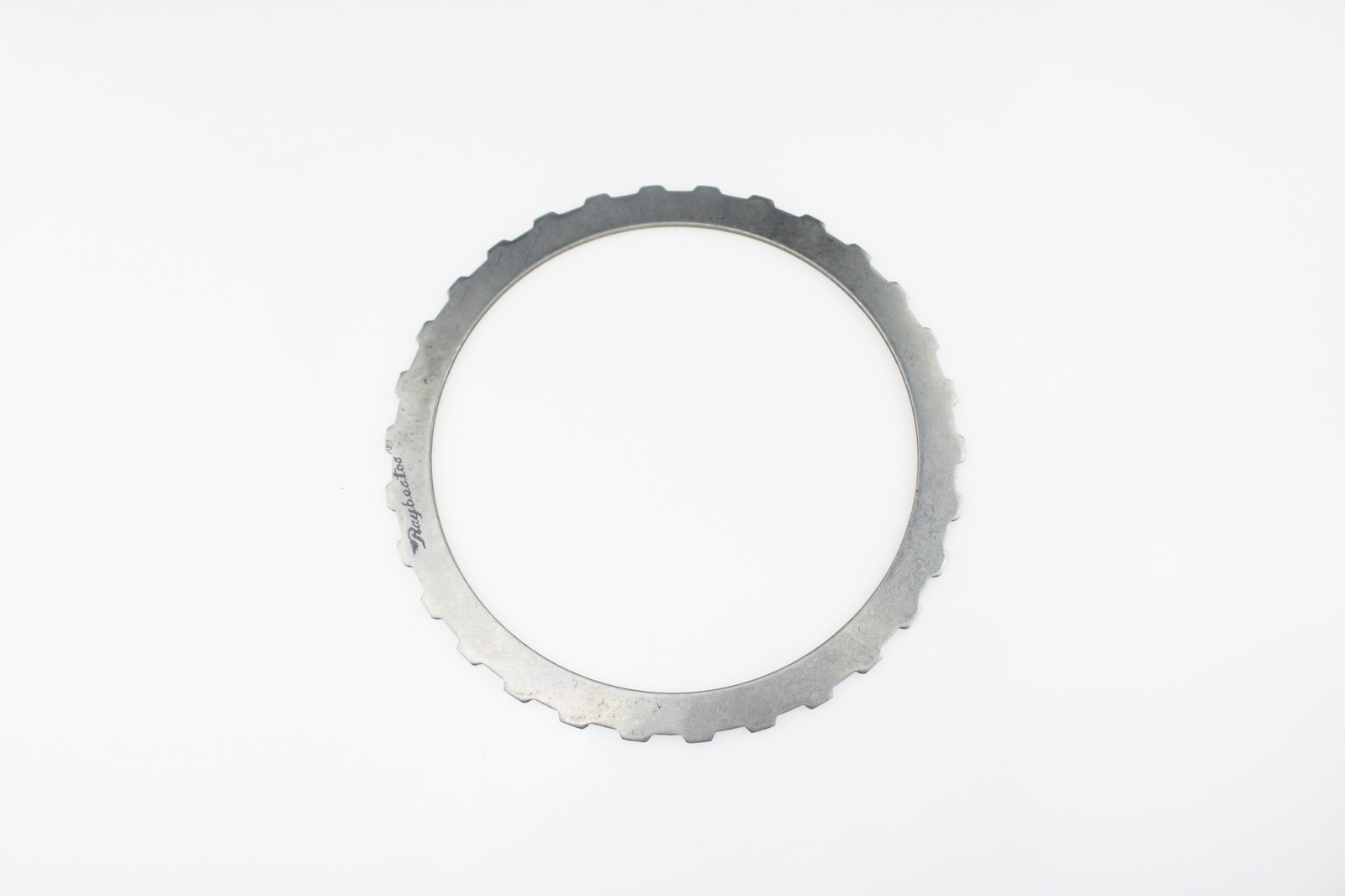

Docisk sprzęgła / Tarcza stalowa 5HP24

Clutch pressure for 01L / 4HP20 / 5HP24 / 5HP24A / 723.69x / A5S 440Z boxes. It closes the disc package and transfers the piston force to the friction surfaces.

The distorted or burnt pressure is manifested by clutch slip, jerk and uneven wear of the discs. Before assembly, compare the thickness, diameter and workmanship with the element dismantled from the box.

Technical data

• Product type: Clutch pressure / steel disc
• Number of teeth: 30
• Internal diameter: 154 mm
• Tooth position: External teeth
• Thickness: 3 mm

Before purchase, it is recommended to verify the matching after the 01L / 4HP20 / 5HP24 / 5HP24A / 723.69x / A5S 440Z box model and a comparison with the element disassembled from the box.

Purpose

• Case type: 01L / 4HP20 / 5HP24 / 5HP24A / 723.69X / A5S 440Z / LM0
• Box manufacturer: Volkswagen AG, ZF, Mercedes Benz, BMW, Renault
• Type of box: automatic
• Number of gears: 4
