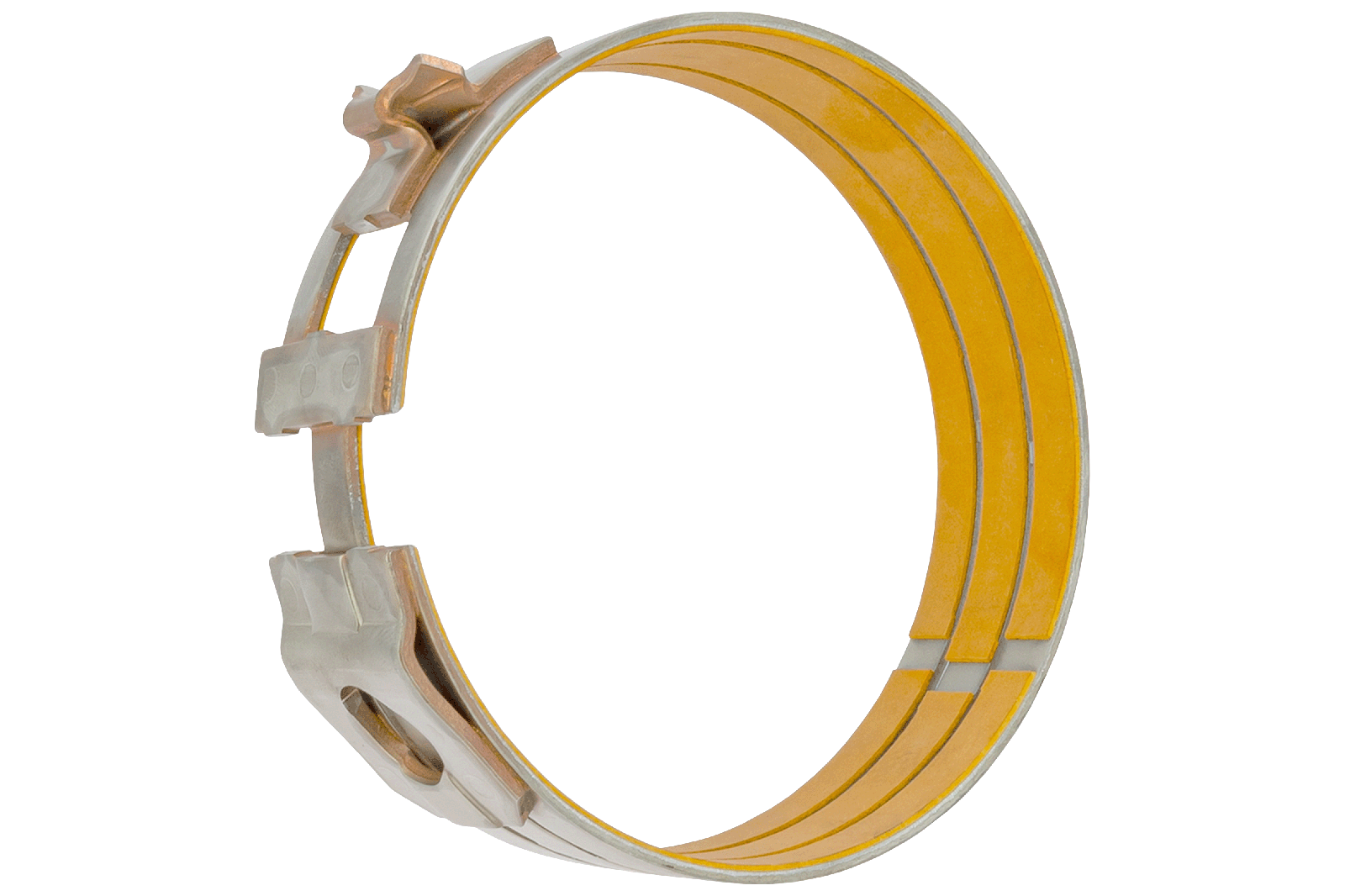

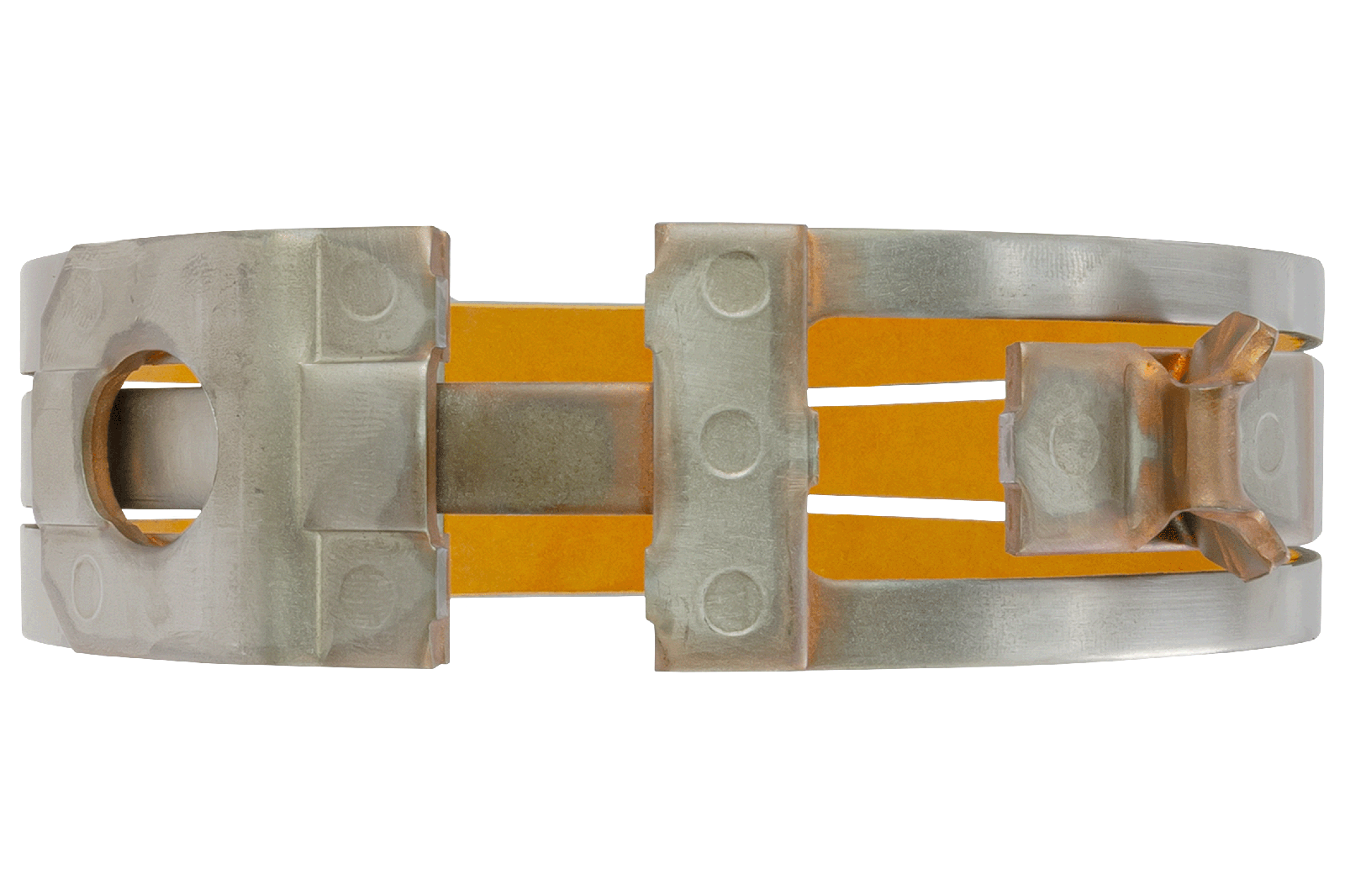

Taśma hamulca AF20 B4-BRAKE BorgWarner

Taśma hamulca przeznaczona do skrzyń 50-40LE / 50-40LM / 50-40LN / 50-41LE / 50-42LE / AF20. Zaciska się na bębnie i zatrzymuje go, realizując zmianę przełożenia w przekładni planetarnej.

The worn-out tape lining is manifested by a slip when shifting, delayed on, jerks and burns visible on the drum. Before assembly, compare the width, diameter and execution of the catches with the element dismantled from the box.

Technical data

• Product type: brake tape
• Belt style: single-turn
• Belt type: elastic band
• Fits the clutch: B4 Brake
• Quality / Manufacturer: BorgWarner
• Lining type: standard
• Width: 37 mm
• Commercial markings: AWD / M93

Before purchase, it is recommended to verify the matching after the 50-40LE / 50-40LM / 50-40LN / 50-41LE / 50-42LE / AF20 model and the other, and a comparison with the element dismantled from the box.

Purpose

• Case type: 50-40LE / 50-40LM / 50-40LN / 50-41LE / 50-42LE / AF20 / AF22 / AF30 / AW42
• Box manufacturer: Aisin Warner, General Motors, Volvo
• Type of box: automatic
• Number of gears: 4
