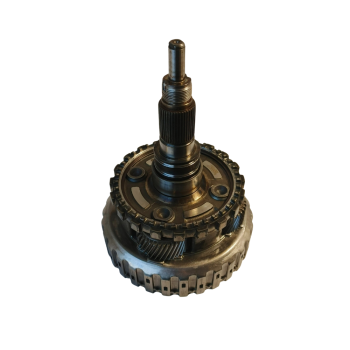

Rear planetary gear No. 4 with output shaft – GA8P75Hz – 37×4 serrations×satellite

Product description

Rear planetary gearbox No. 4 with output shaft, designed for automatic transmission GA8P75HZ.

The assembly is responsible for the final stage of the torque transfer to the output shaft of the box, working under high load and in precisely selected gears.

The planetary is equipped with 4 Satellites, each of 37 teeth, which ensures even load distribution and stable operation of the gearbox.

The element is Complete team - Ready to install after verifying the play and the condition of the cooperating elements.

The wear of the planetary gear can be manifested by noise, vibrations, jerking when shifting gears or no transmission.

master data

• Item Type: Rear Planetary Gear

• Gear Number: No. 4

• Transmission Type: Automatic

• Box model: GA8P75HZ

• Number of satellites: 4

• Number of satellite teeth: 37

• Output shaft: complete

• Team Type: Complete

• Application: Rear of the planetary system

Installation notes

• Recommended check of bearings, bushings and meshings before assembly

• Recommended gear oil change after repair

• Installation only in accordance with the procedure of the box manufacturer
