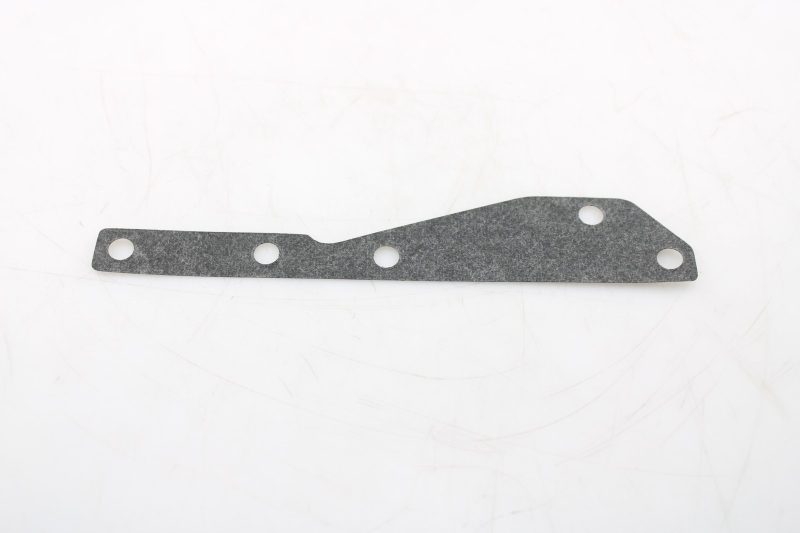

Uszczelka 4HP14 VB

Uszczelka przeznaczona do skrzyń 4HP14 / 4HP18. Uszczelnia połączenie elementów obudowy i utrzymuje ciśnienie oleju w kanałach sterujących przekładni.

The worn gasket is manifested by an oil leak at the contact of the elements, a decrease in its level and the dampness of the housing. The gaskets are disposable - they are replaced with new ones every time the assembly is unscrewed. Before assembly, compare the outline and spacing of the holes with the dismantled element.

The replacement takes place in the case of oil leakage, after disassembly of the cover or body and with each repair opening the given node. The material ages thermally and loses its elasticity. Before assembly, the surfaces of the remnants of the old material are cleaned, the flange is checked and the torque and the order of tightening the bolts are maintained.

Technical data

• Product type: gasket

Przed zakupem zalecana jest weryfikacja dopasowania po modelu skrzyni 4HP14 / 4HP18 oraz porównanie z elementem zdemontowanym ze skrzyni.

Purpose

• Case type: 4HP14 / 4HP18
• Box manufacturer: ZF
• Type of box: automatic
• Number of gears: 4
