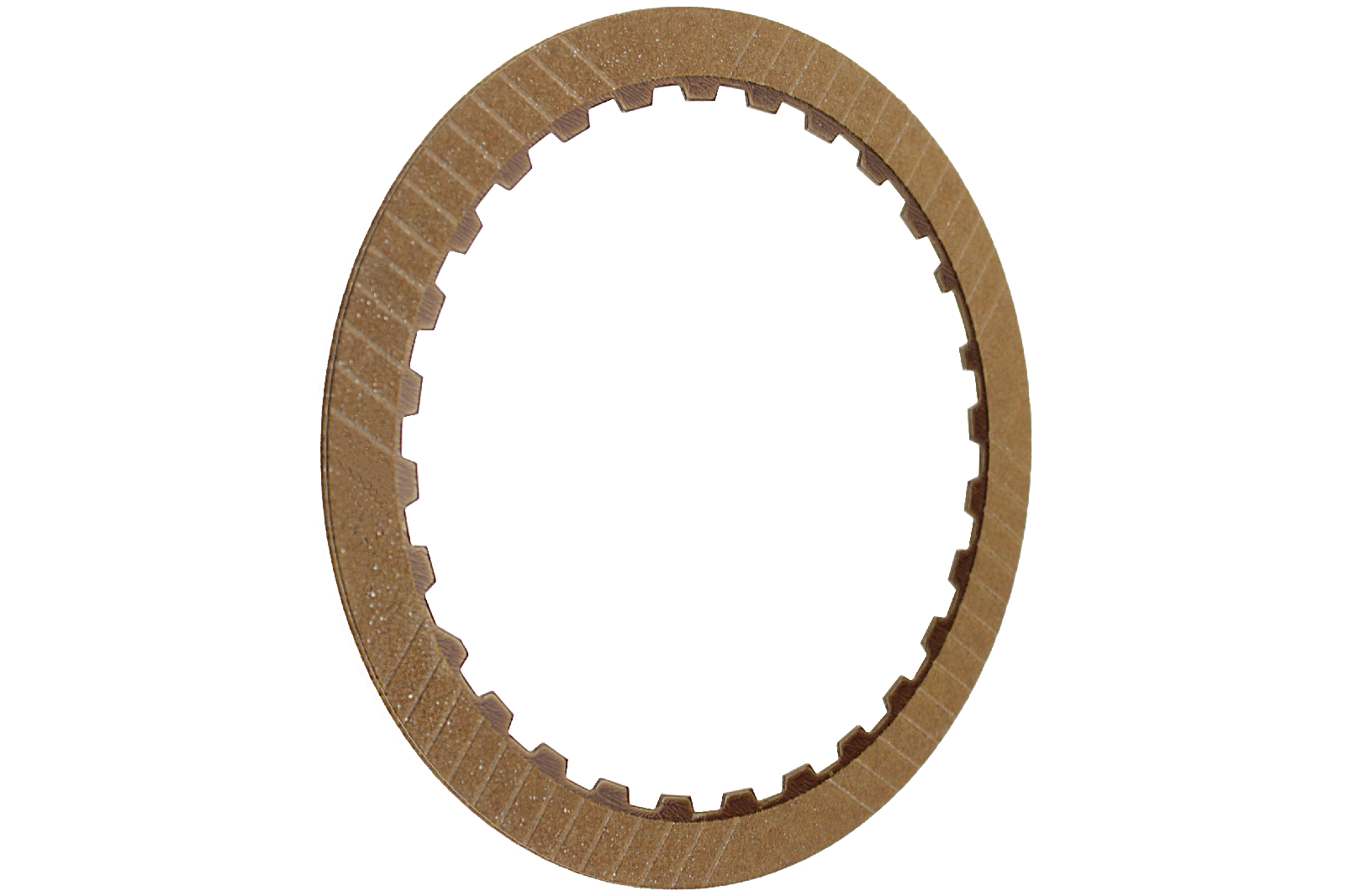

Tarcza cierna A604/A606/42RLE/62TE BorgWarner

Tarcza cierna przeznaczona do automatycznych skrzyń biegów 40TE / 40TES / 41AE / 41TE / 41TES / 42LE. Pracuje w pakiecie sprzęgła zanurzonym w oleju i odpowiada za przenoszenie momentu obrotowego podczas załączania biegu — jej okładzina decyduje o płynności i powtarzalności zmiany przełożenia.

The wear of the cladding is manifested by jerking when shifting gears, slipping the clutch package, delayed switching, increasing oil temperature and the presence of friction particles in the oil pan. Before assembly, you should compare the number of teeth, thickness and diameter with the element dismantled from the box.

Technical data

• Product type: friction-blade
• Number of teeth: 28
• Outer diameter: 138.1 mm
• Fits the clutch: Overdrive/Underdrive/Reverse Clutch
• Type of friction lining: two-sided cladding
• Friction surface: grooved pattern
• Quality / Manufacturer: BorgWarner
• Condition: new
• Tooth position: Internal teeth
• Thickness: 1.9 mm
• Commercial markings: 138.1X1.9 / 28Z

Before purchase, it is recommended to verify the fit after the 40TE / 40TE / 41AE / 41TE / 41TES / 42LE and other box model, and a comparison with the element dismantled from the box.

Purpose

• Case type: 40TE / 40TES / 41AE / 41TE / 41TES / 42LE / 42RLE / 62TE / 62TEA / A604 / A606
• Box manufacturer: Chrysler
• Type of box: automatic
• Number of gears: 4

Zamienniki katalogowe: A604.FRP11.
